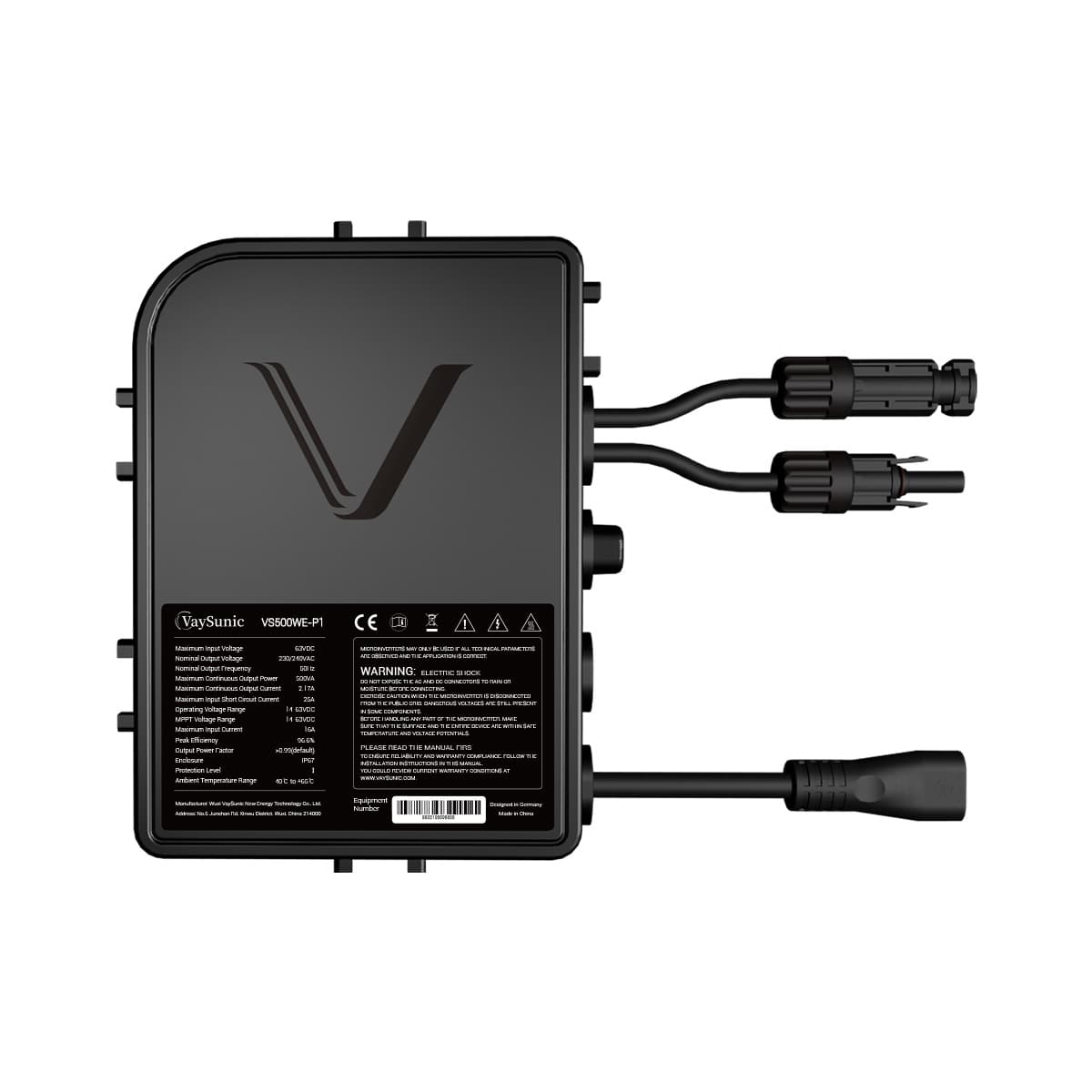

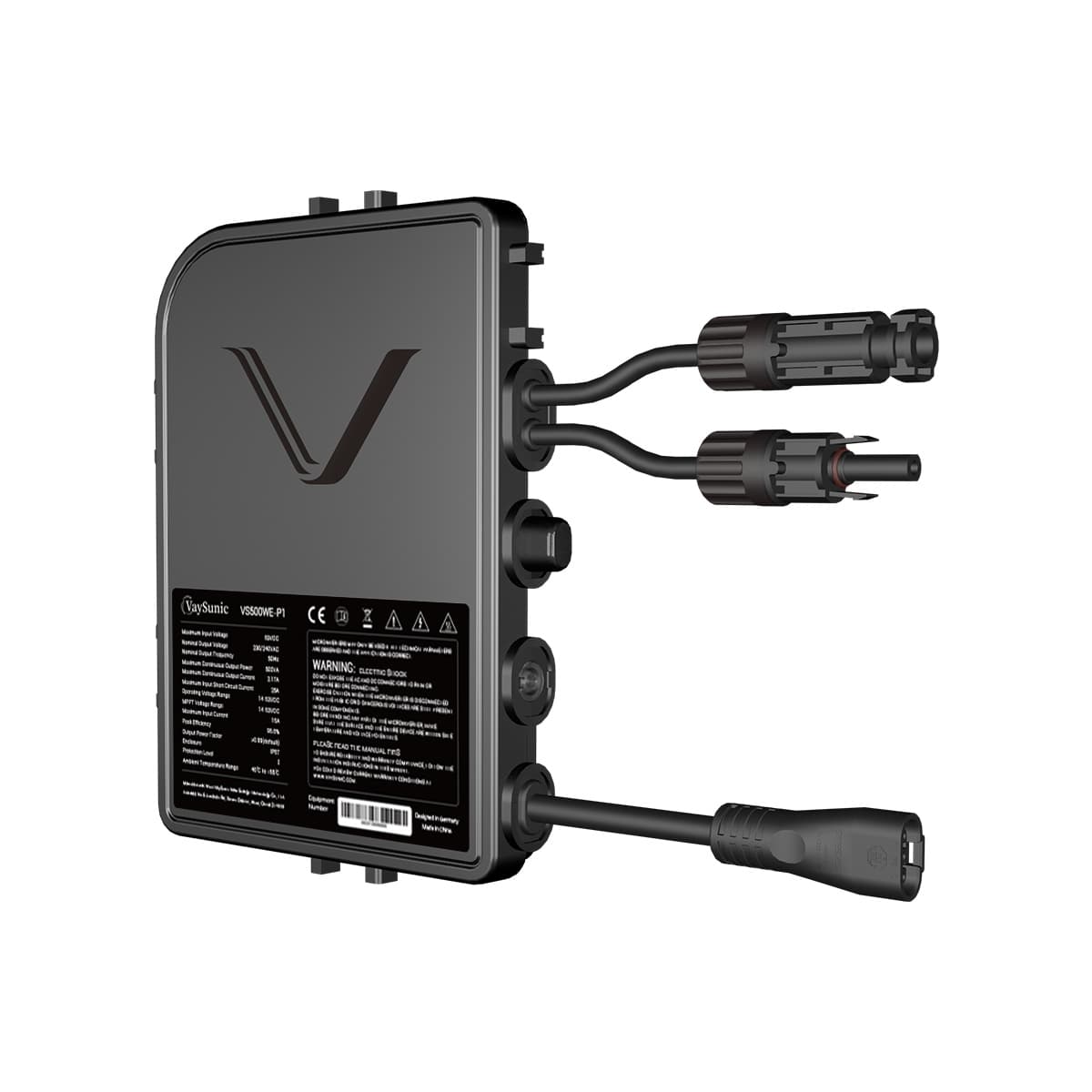

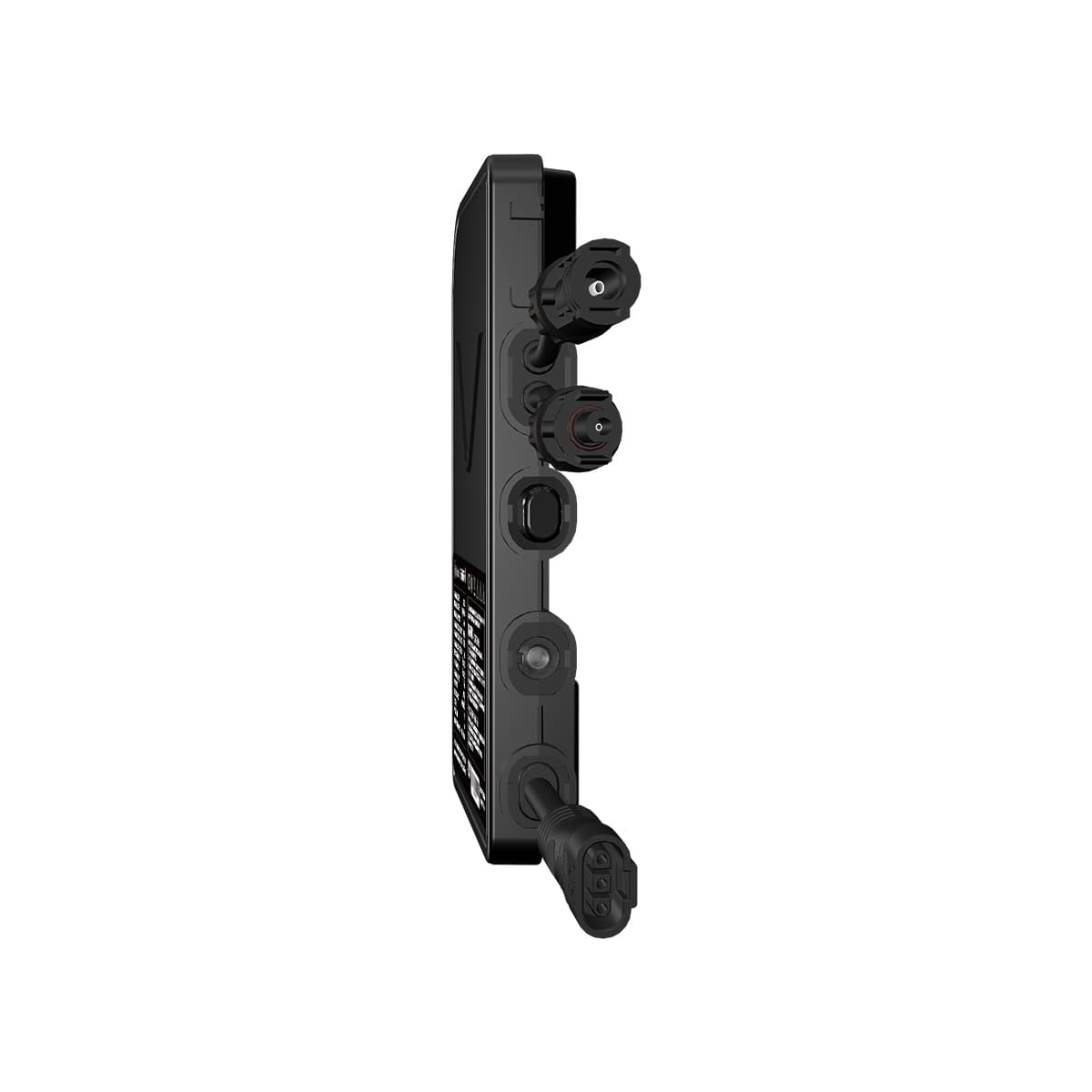

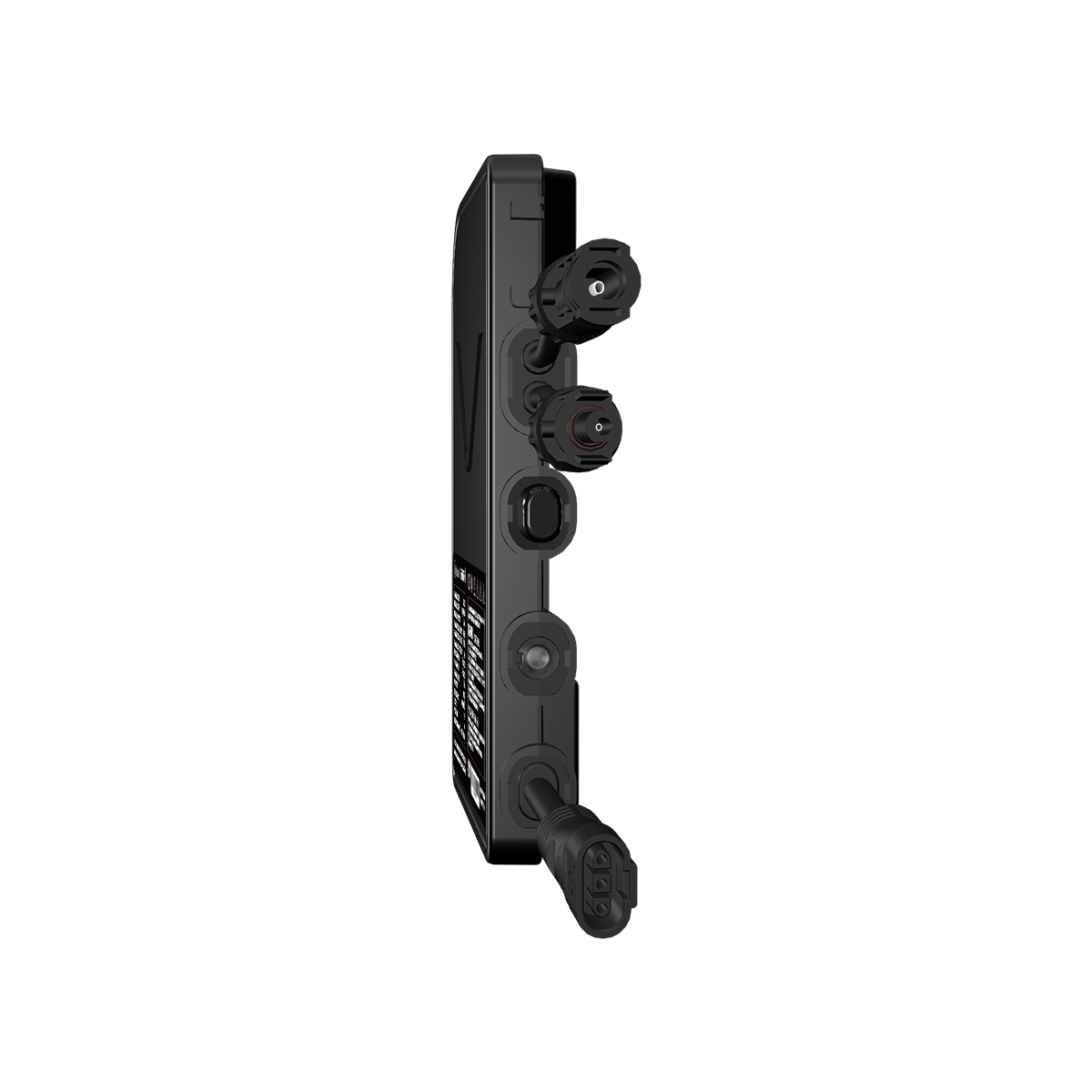

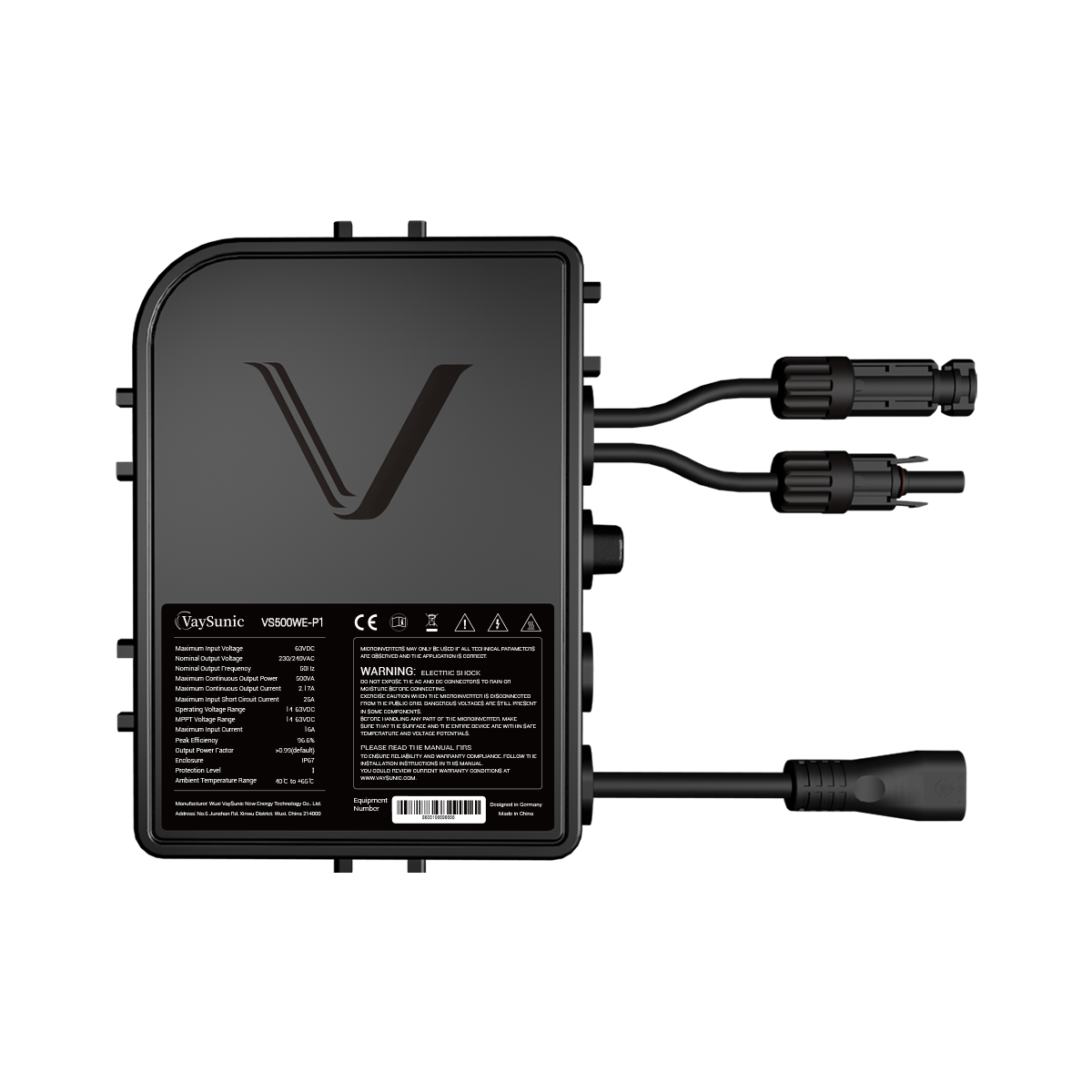

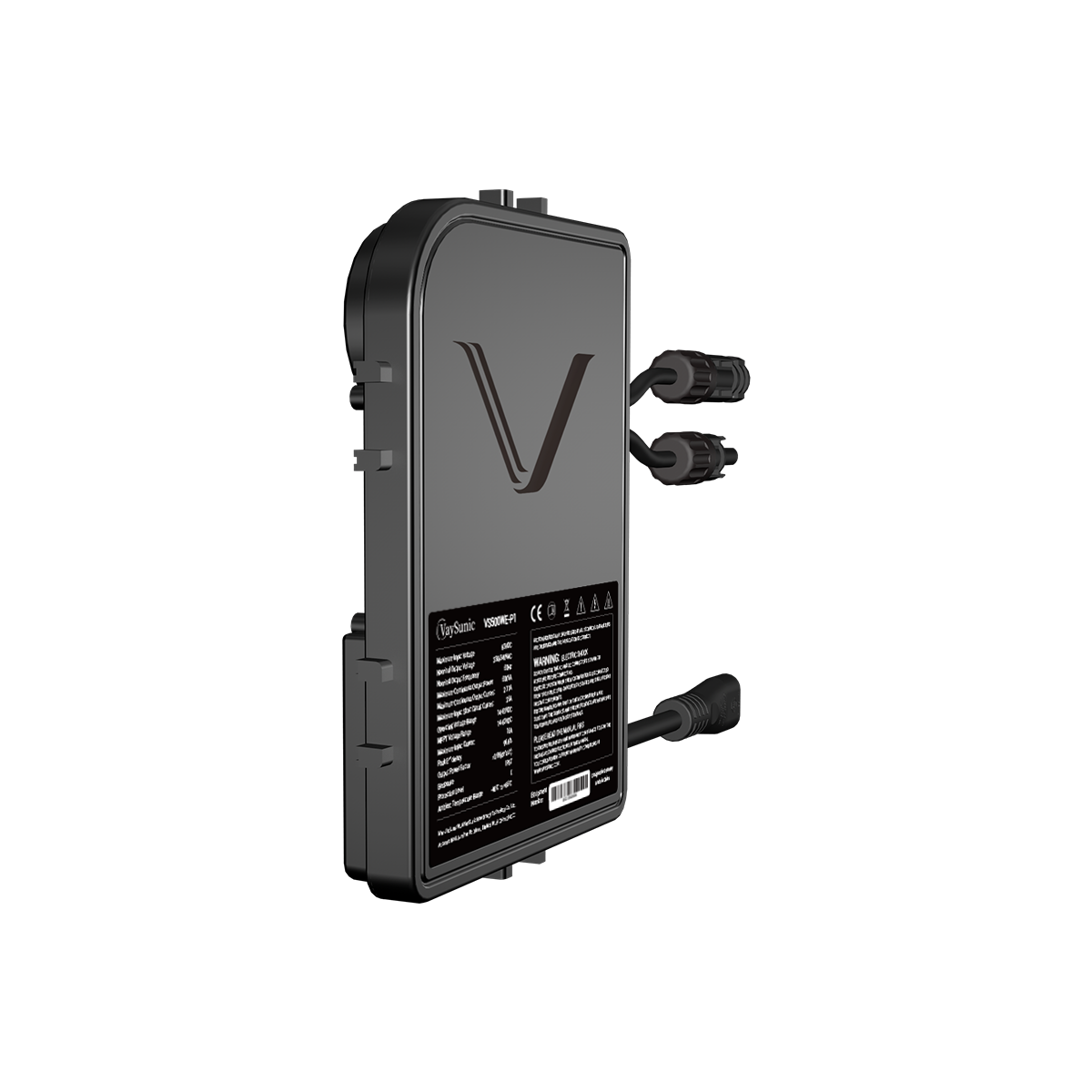

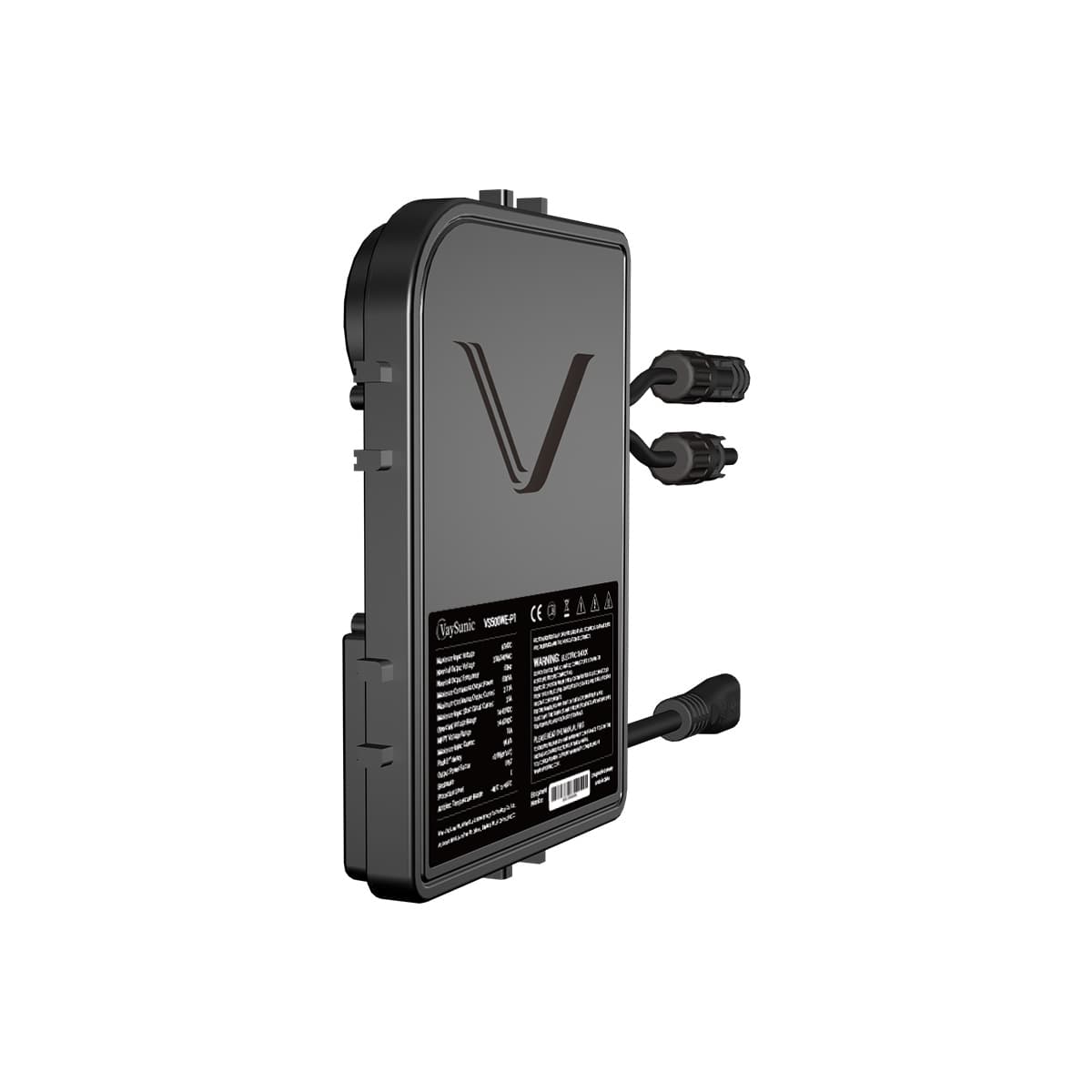

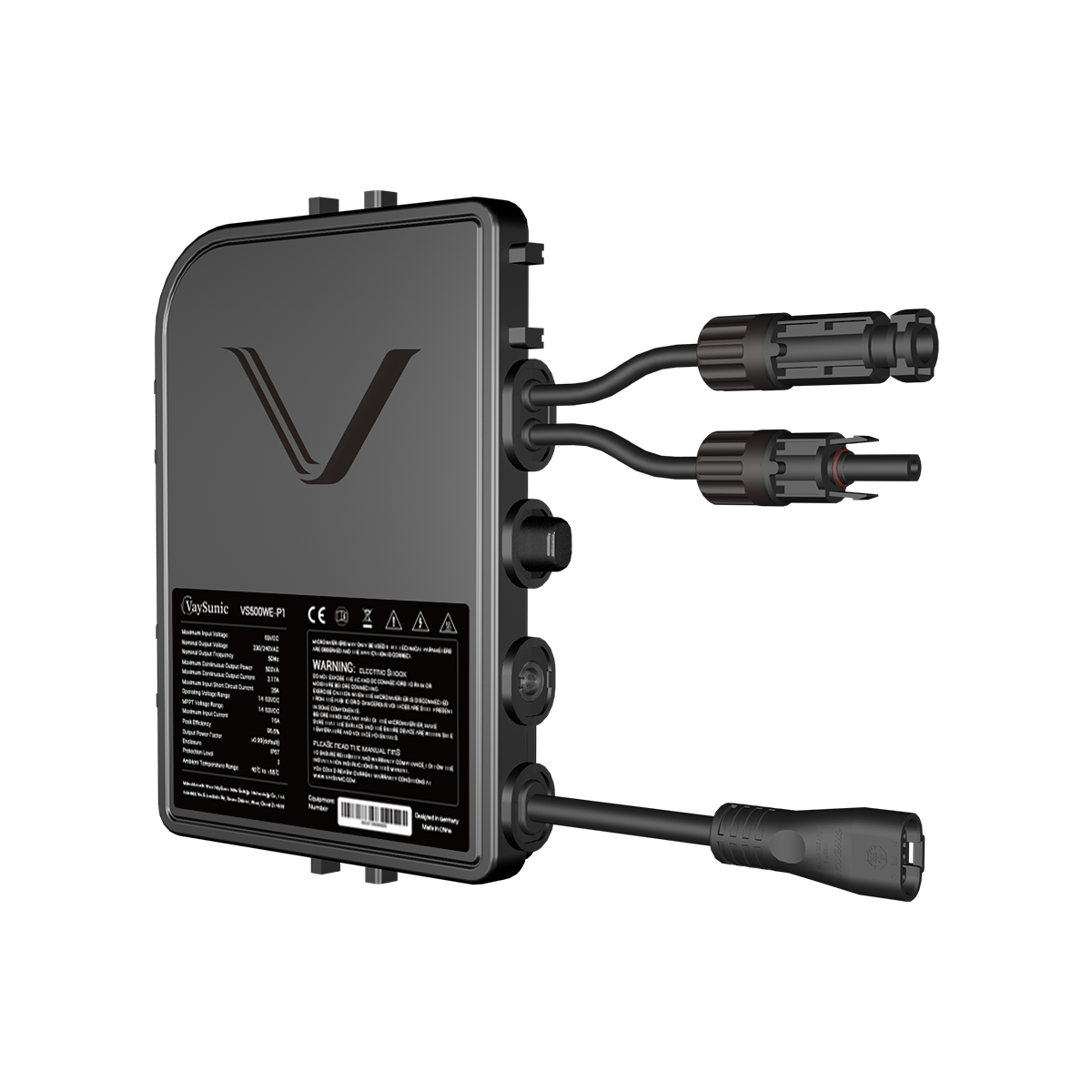

VS Series

VS 350 400 450 500WE/BE-P1

The high-powered VS-P1 Microinverters with MC4 connectors dramatically simplify the installation process while achieving the highest system efficiency.

VS-P1 Microinverters, part of the VaySunic VIP System, integrate with the Energy storage Battery, SCG-G1 and the VaySunic Cloud monitoring and Smart Meter.

＊The VS 350 400 450 500BE-P1 model microinverters must be used with(have to use together with) the SCG-G1 (Solar Control Gateway) to provide reliable data transmission in long-distance transmission environments.

Read More

  • Ultra-high protection, IP-67.

  • High-temperature performance: Operates at full power even at 55°C, ensuring continuous energy supply without interruption.

  • Compliant with RSD, 100% EMC Compliance.

  • 15-year standard warranty, extendable to 25 years.

  • Low-light power generation: The solar panel generates over 2W, enabling the inverter to start functioning. This results in three additional hours of energy production per day compared to similar brands on the market.

  • Commonly Module Power: 280W to 470W+

  • Operation Voltage Range: 14V to 60V

  • Number of MPPTs: 1

  • Rated Output Power: 350VA

  • Dimensions (W x H x D): 300mm × 126mm × 32mm

  • Weight: 1.75kg

  • Communication: WIFI( WE-P1 ) / Sub-1G( BE-P1 )

  • Commonly Module Power: 320W to 540W+

  • Operation Voltage Range: 14V to 60V

  • Number of MPPTs: 1

  • Rated Output Power: 400VA

  • Dimensions (W x H x D): 300mm × 126mm × 32mm

  • Weight: 1.75kg

  • Communication: WIFI( WE-P1 ) / Sub-1G( BE-P1 )

  • Commonly Module Power: 360W to 600W+

  • Operation Voltage Range: 14V to 60V

  • Number of MPPTs: 1

  • Rated Output Power: 450VS

  • Dimensions (W x H x D): 300mm × 126mm × 32mm

  • Weight: 1.75kg

  • Communication: WIFI( WE-P1 ) / Sub-1G( BE-P1 )

  • Commonly Module Powe: 400W to 670W+

  • Operation Voltage Range: 14V to 60V

  • Number of MPPTs: 1

  • Rated Output Power: 500VA

  • Dimensions (W x H x D): 300mm × 126mm × 32mm

  • Weight: 1.75kg

  • Communication: WIFI( WE-P1 ) / Sub-1G( BE-P1 )

Steps on how to install VS 350 400 450 500WE/BE-P1 microinverters and the monitoring program.
