Microinverter · 2 MPPT

SolarCore P2

Two modules, two MPPTs, one unit — including the 800 W model for balcony and plug-in solar where local rules allow. Wi-Fi pairing in the VIP Cloud app takes about 10 seconds*.

VM600WE-P2VM700WE-P2VM800WE-P2VM900WE-P2VM1000WE-P2
Request a quote Download datasheetExplore in 3D

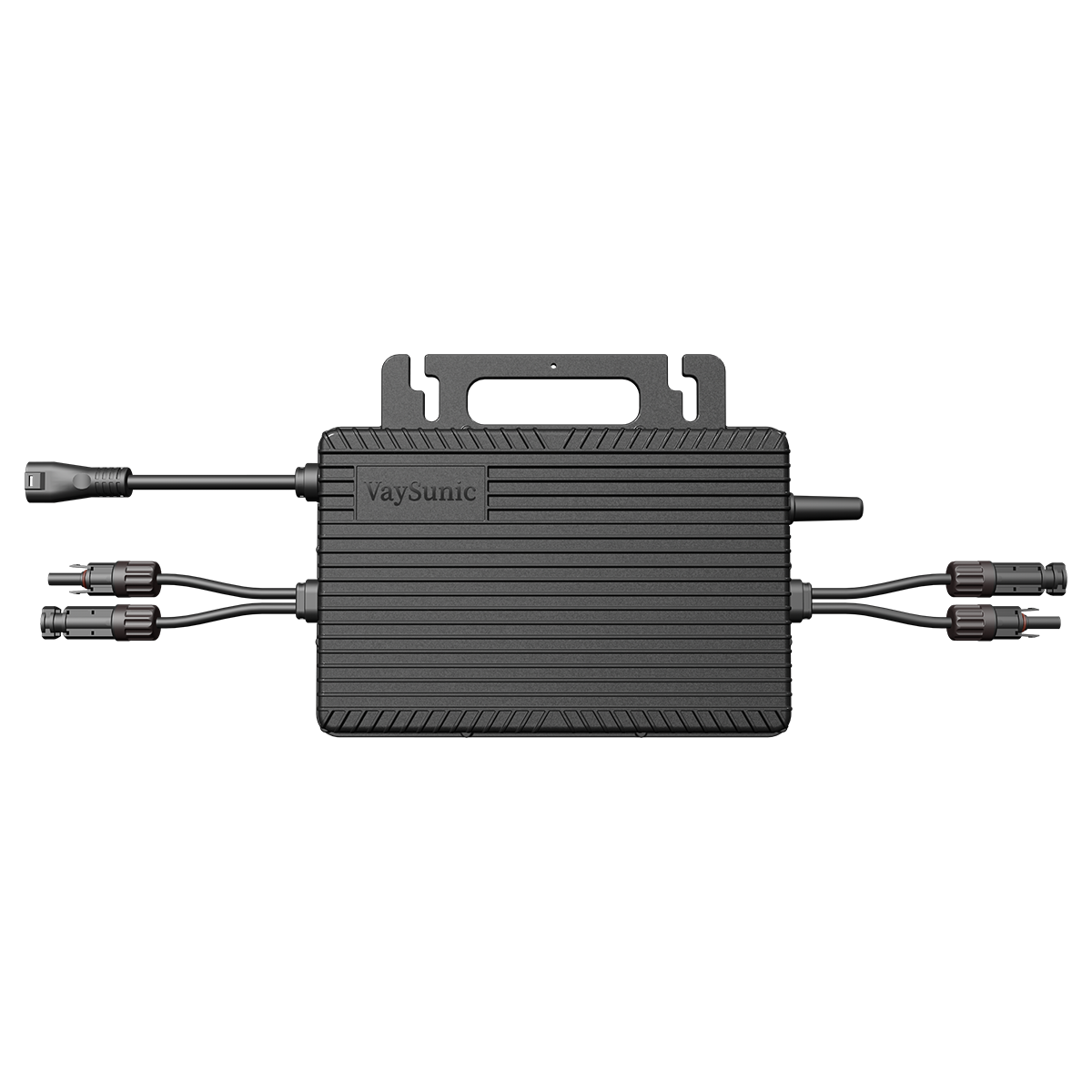

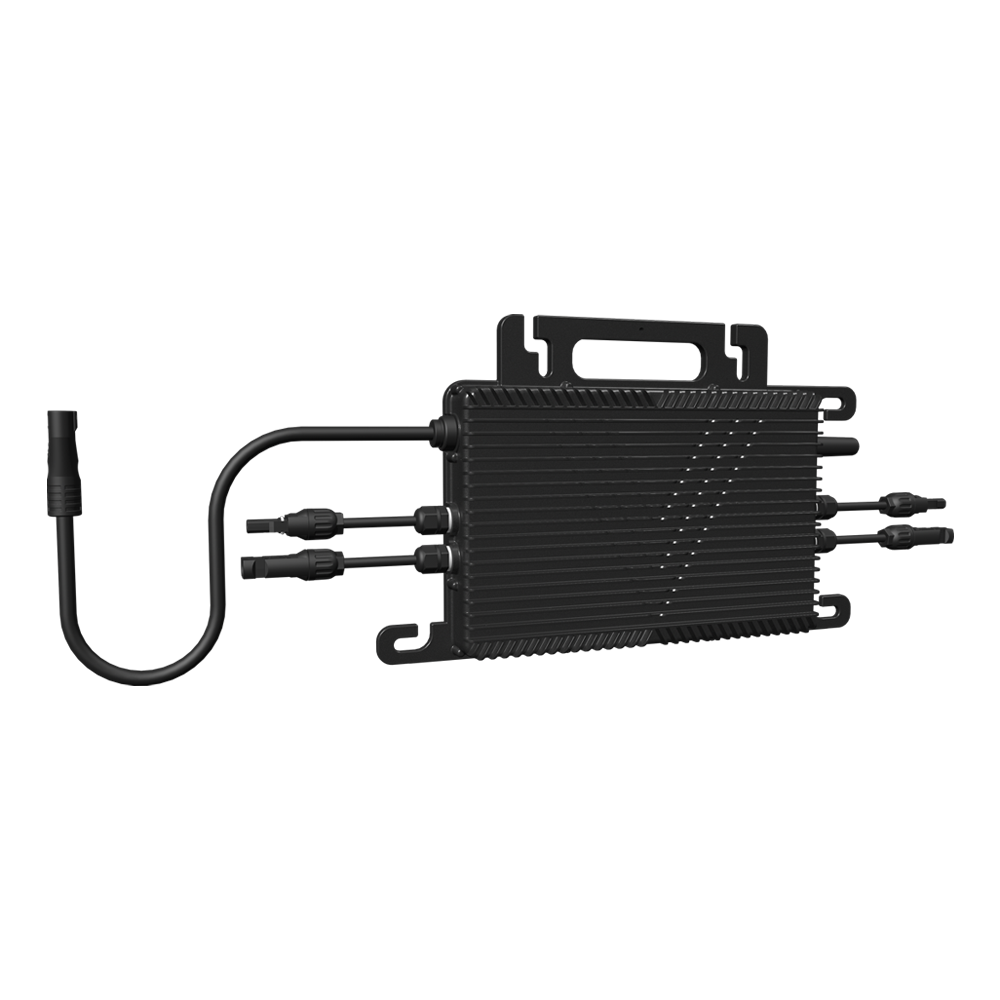

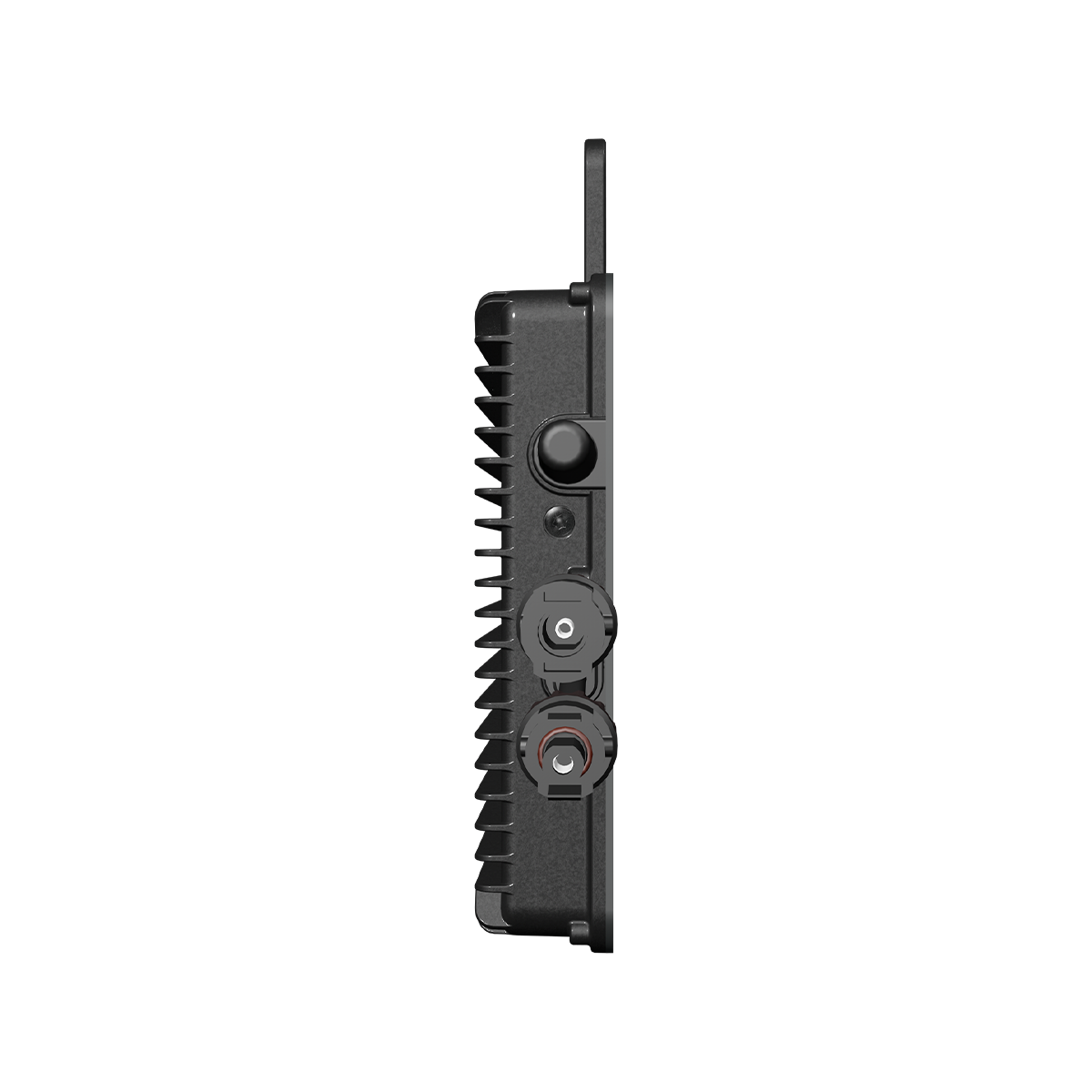

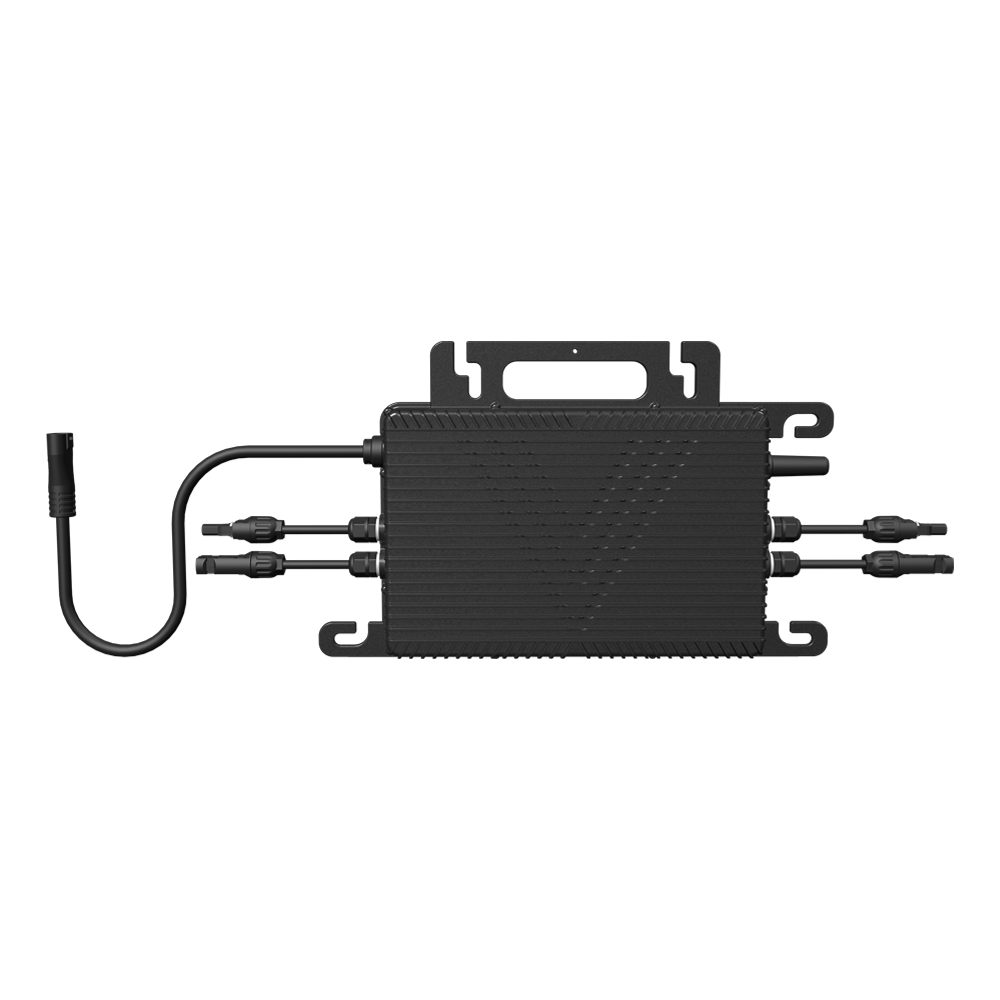

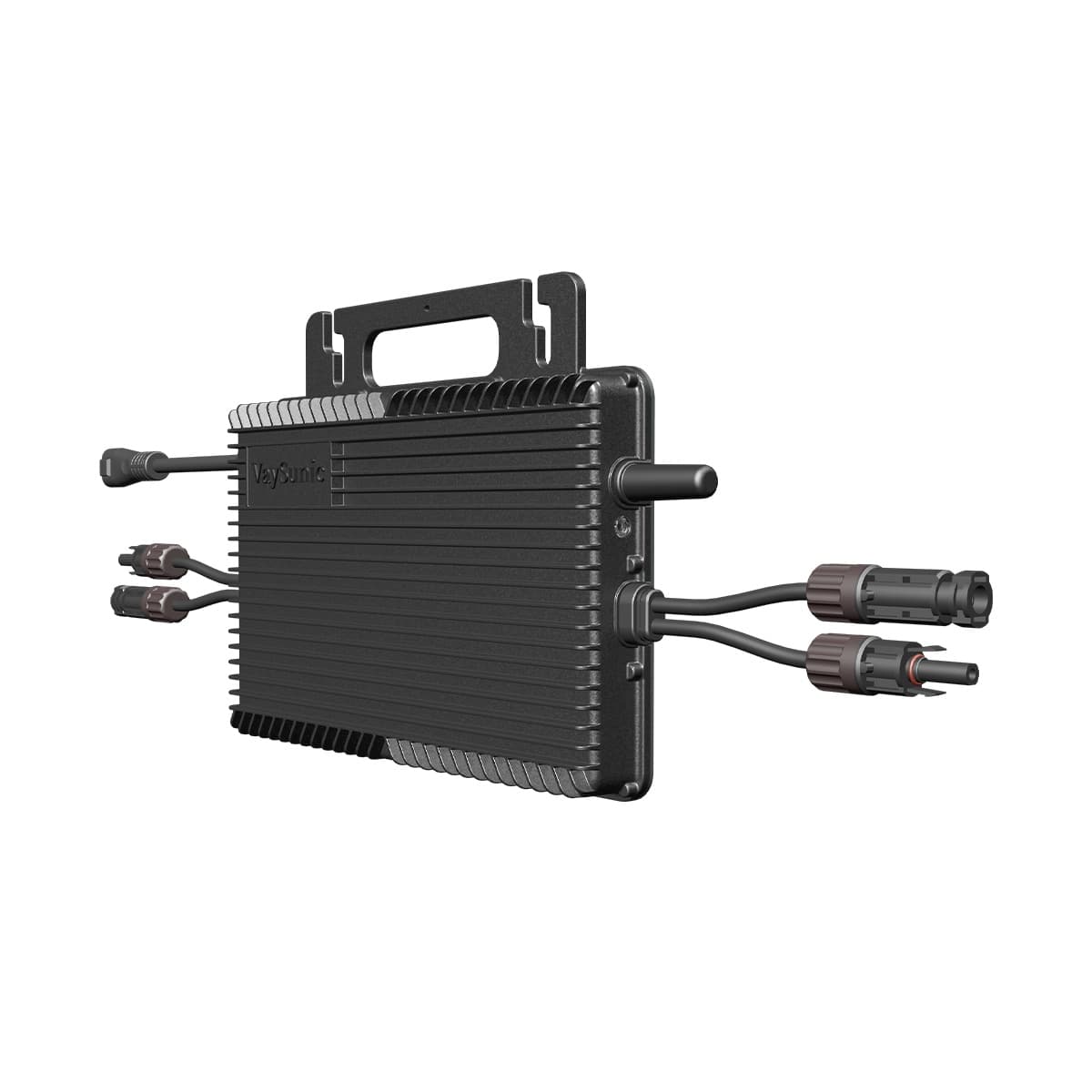

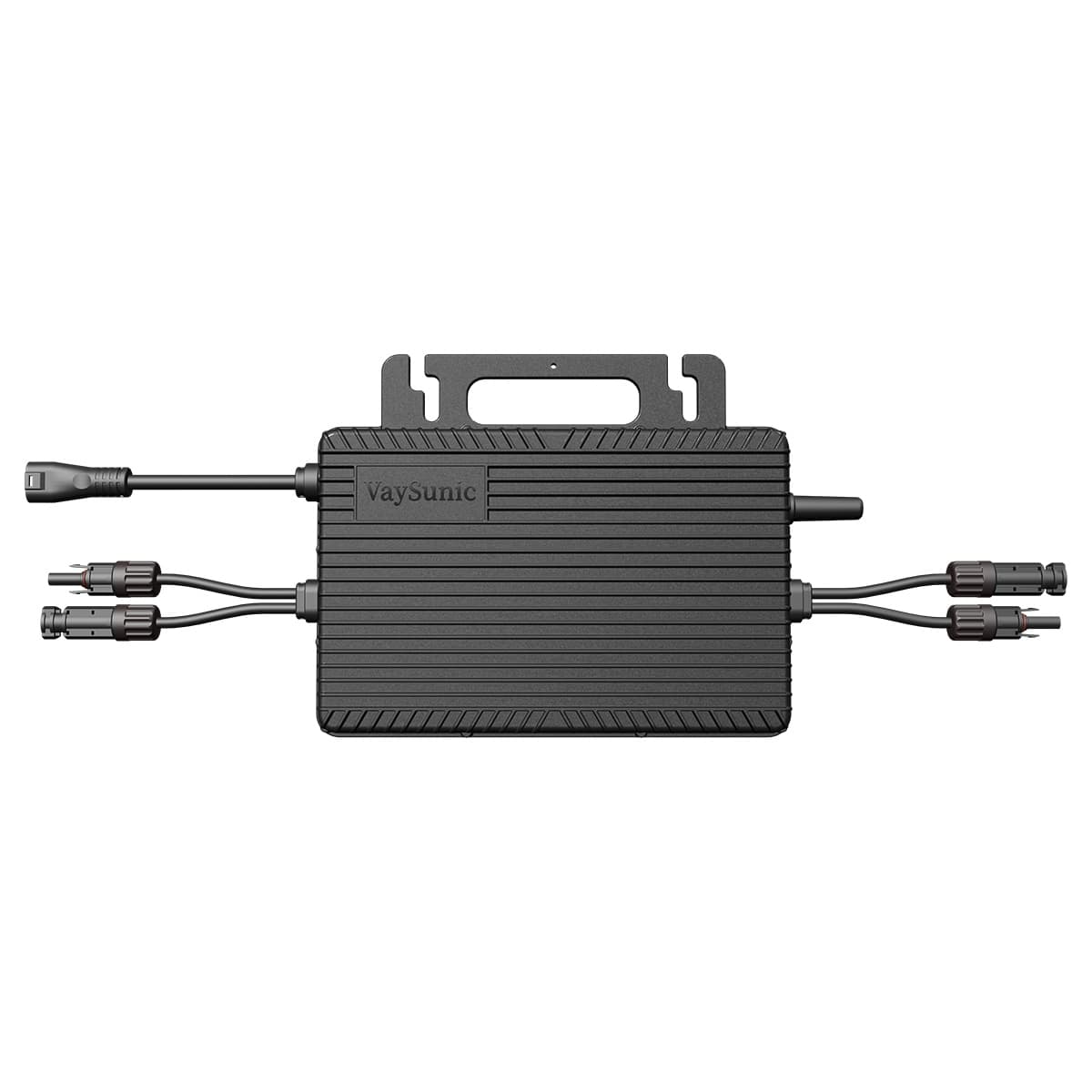

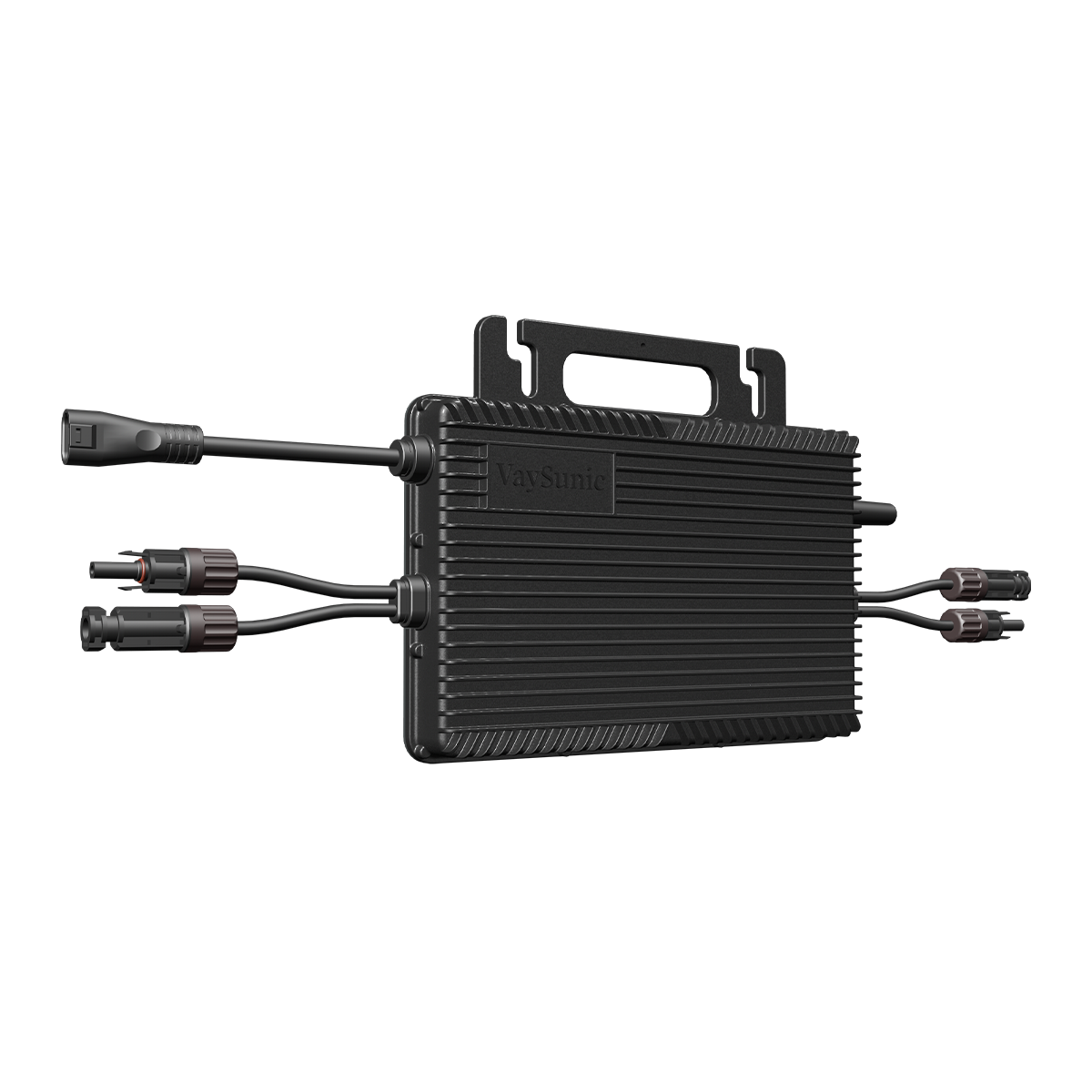

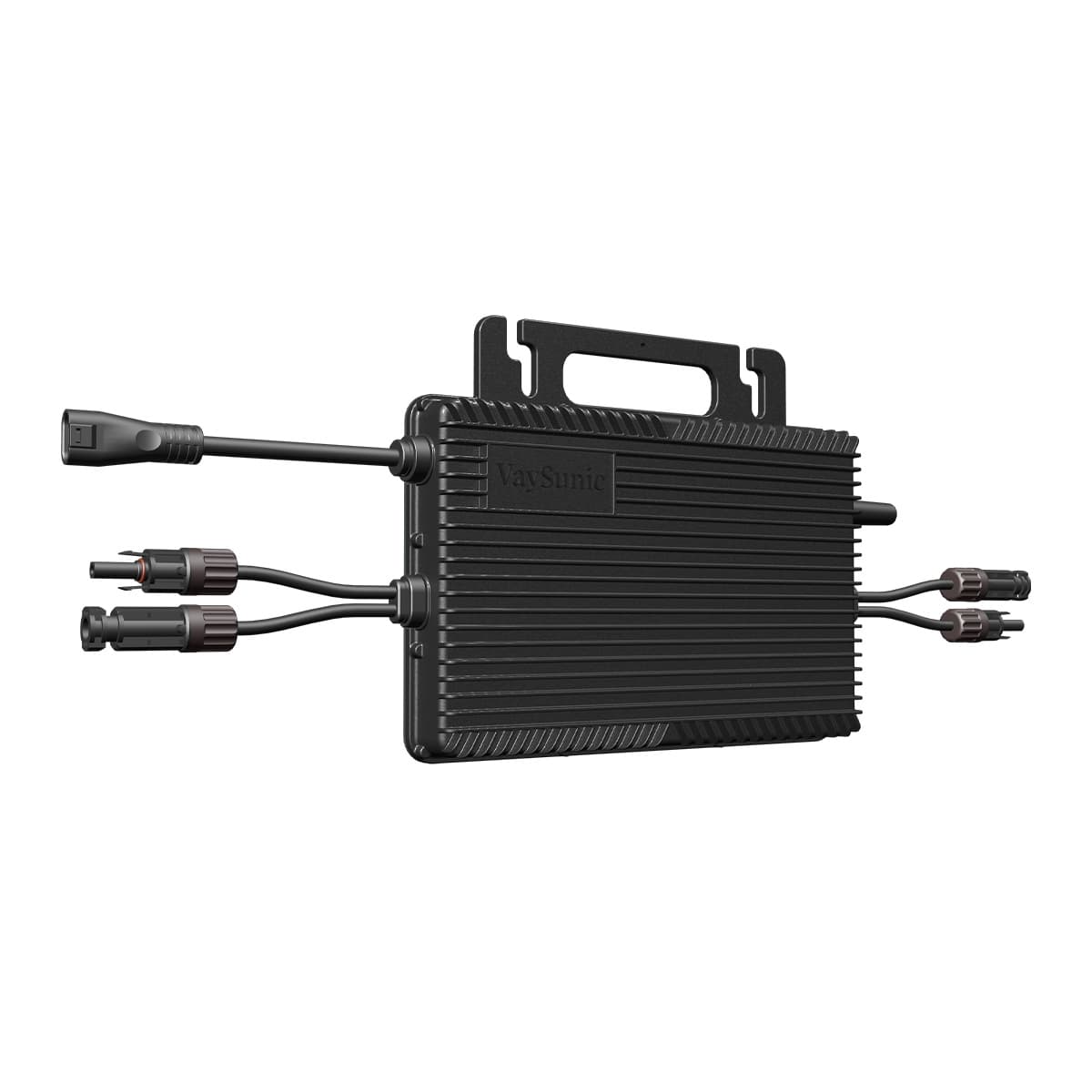

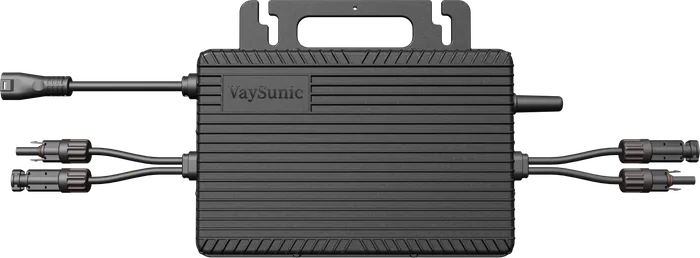

SolarCore P2 solar microinverter: VM600WE-P2, VM700WE-P2, VM800WE-P2, VM900WE-P2, VM1000WE-P2SolarSolarCore P2
SolarCore P2 solar microinverter: VM600WE-P2, VM700WE-P2, VM800WE-P2, VM900WE-P2, VM1000WE-P2
600–1,000 VARated output · 800 W plug-in model
2 MPPTTwo modules per unit
~10 sWi-Fi pairing*
IP67Metal housing, −40 to 65 °C

* With good signal, a working network and a normal device connection.

Highlights

Made for balcony and plug-in solar.

  • Wi-Fi pairing in about 10 seconds*

    Added in the VIP Cloud app over 2.4 GHz Wi-Fi — no gateway needed.

    * With good signal, a working network and a normal device connection.

  • Plug-in to rooftop

    VM800WE-P2 for balcony plug-in; the full range for gardens and roofs.

    Plug-in only where local rules allow; permitted power limits differ by country.

  • Two independent MPPTs

    Each module tracked on its own, with MPPT efficiency up to 99.8%.

  • −40 to 65 °C

    IP67 metal housing, fanless, for balconies, roofs and gardens.

Keep module Voc below 60 V at the lowest expected site temperature — Voc rises in the cold.

How it grows

Start on the balcony. Grow to a whole roof.

VM800WE-P2 runs a plug-in balcony system; the full range builds rooftop arrays and smart home systems with storage.

HomeDistribution boardGridSolarCore P2Household socket≤ 800 W plug-inSolar moduleSolarCore P2T-connectorAC trunk cableAC boxInstalled by an electricianOne smart systemEnergyPilotCTPowerCube

  1. Two modules, one household socket.

    VM800WE-P2 takes two modules and connects to a household socket with a plug-in AC cable. Plug-in use is limited to 800 W and allowed only where local rules permit.

    • 2 modules
    • VM800WE-P2
    • Plug-in AC cable
    • Household socket

Illustration simplified. Plug-in connection only up to 800 W and only where local rules allow. Systems on an AC trunk cable are installed by a qualified electrician.

Network set-up

Paired in about 10 seconds*.

Power the microinverter, open the VIP Cloud app and add it over Wi-Fi. It joins the home network directly — no gateway, no separate data logger — and starts reporting live data in about 10 seconds*.

  • Direct 2.4 GHz Wi-Fi, no extra hardware
  • Guided pairing in the VIP Cloud app
  • Live output and yield history from the first minute

* With good signal, a working network and a normal device connection.

Paired in about 10 seconds*.
Where it fits

From plug-in balcony to rooftop.

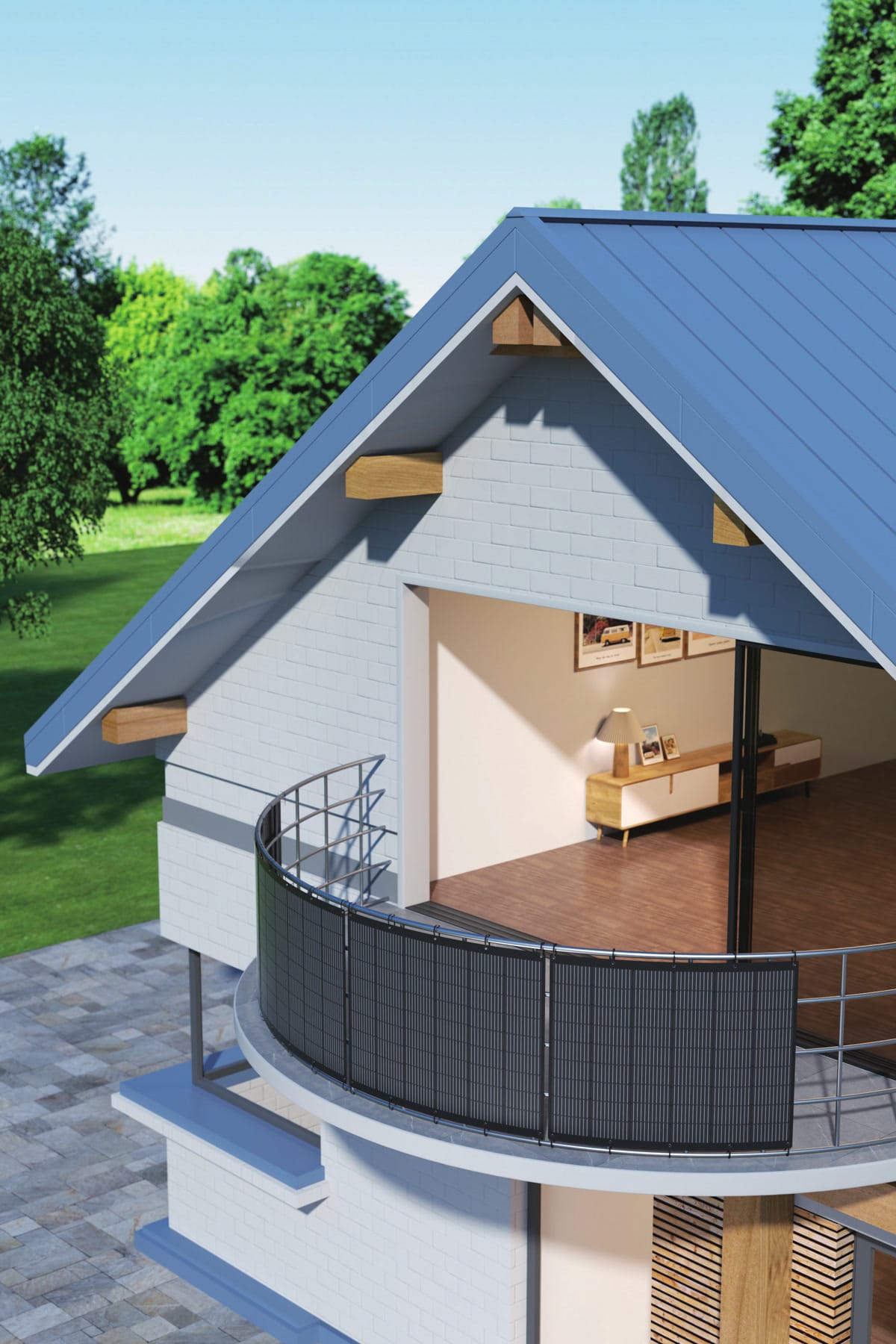

Balcony and plug-in
Balcony plug-in

Balcony and plug-in

VM800WE-P2 + 2 modules

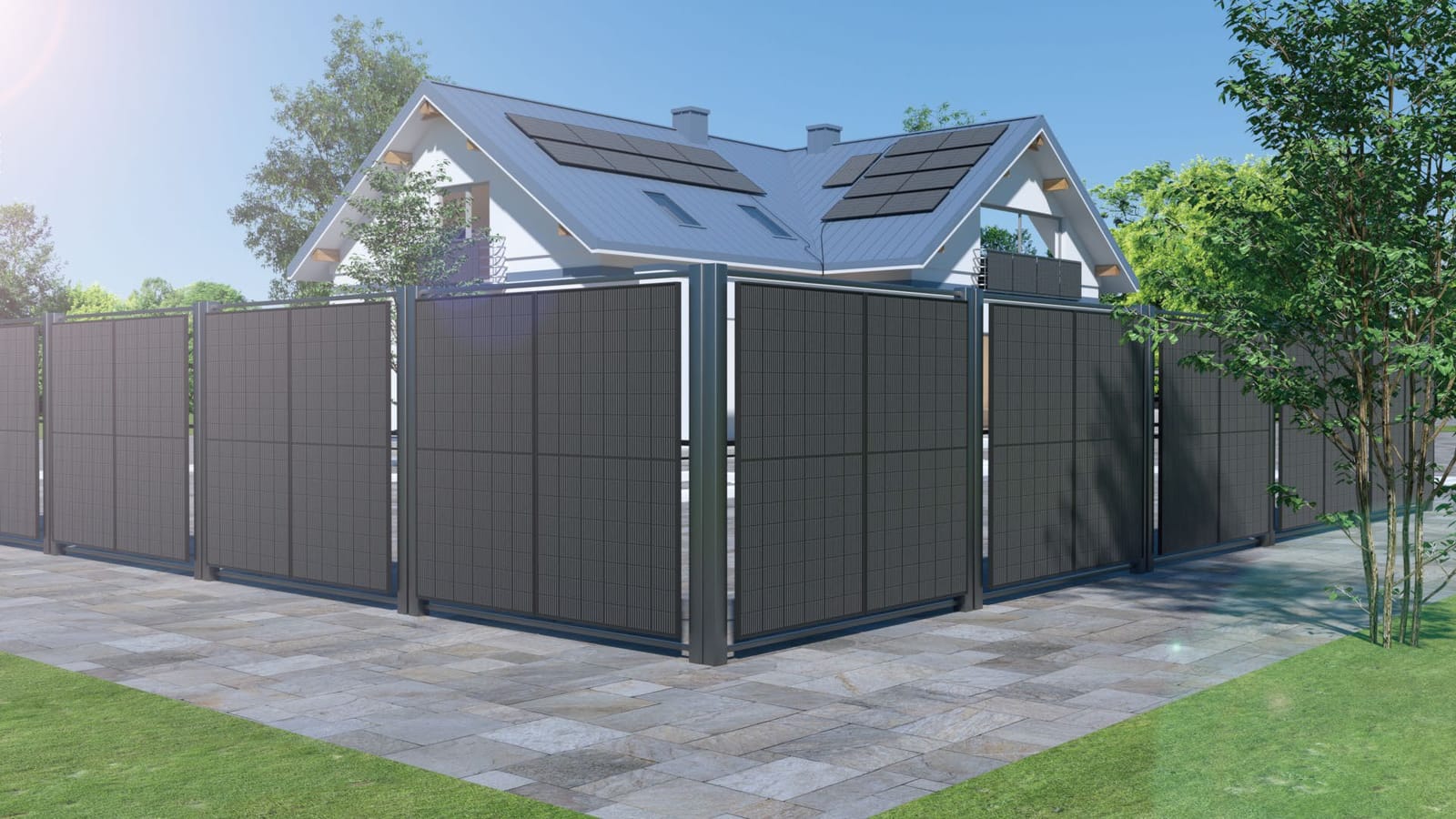

Gardens, fences and sheds
Garden

Gardens, fences and sheds

Fences, sheds and carports

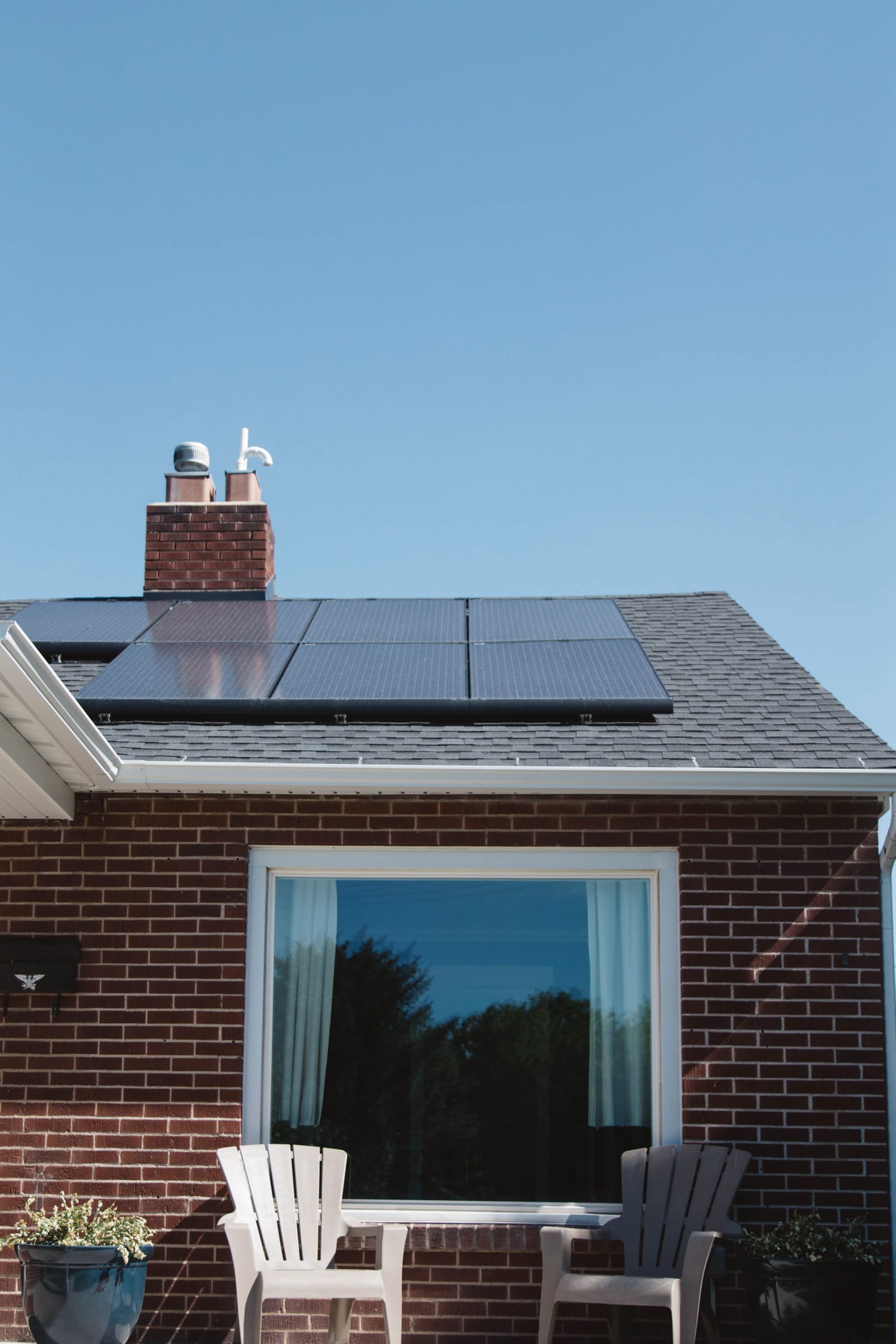

Rooftop arrays
Rooftop

Rooftop arrays

Several units on one AC trunk cable

Plug-in only where local rules allow; permitted power limits differ by country.

Watch

Product overview.

SolarCore P2 — product overview

Playing a video loads it from YouTube (Google), which then receives your IP address. Privacy policy

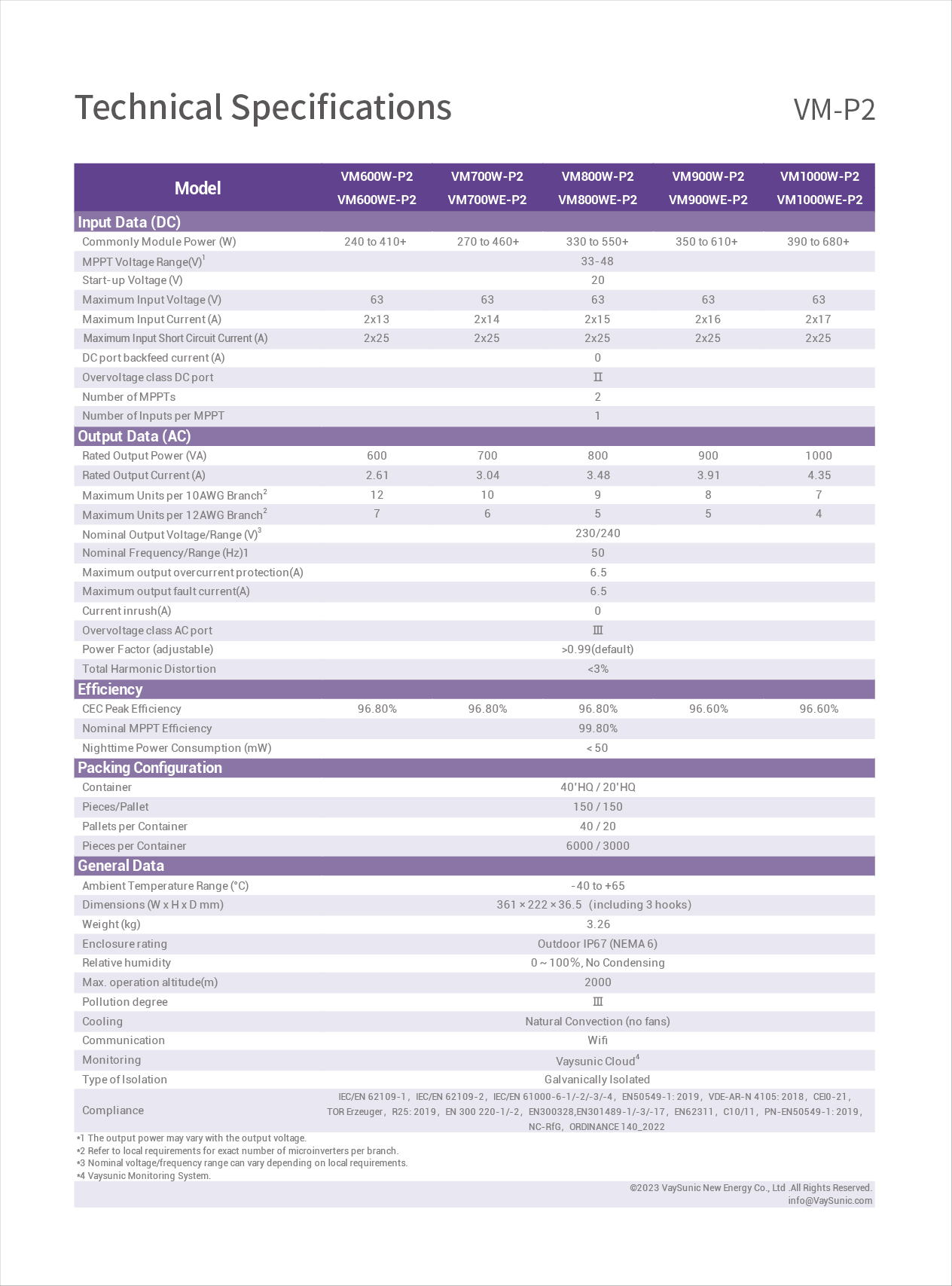

Specifications

SolarCore VM-P2

ModelVM600WE-P2VM700WE-P2VM800WE-P2VM900WE-P2VM1000WE-P2
Rated output (VA)6007008009001,000
Rated output current (A)2.613.043.483.914.35
Compatible module power (Wp)240–410270–460330–550350–610390–680
Peak efficiency96.8%96.8%96.8%96.6%96.6%
MPPT efficiencyup to 99.8%
Max. units per branch (2.5 / 4 mm²)7 / 126 / 105 / 95 / 84 / 7
PV input (DC)
MPPTs / inputs per MPPT2 / 1
Operating / MPPT voltage range14–63 V / 16–60 V
Start-up voltage18 V
Max. input voltage63 V
Max. input / short-circuit current per MPPT18 A / 25 A
AC output
Nominal voltage (range)230 / 240 V (180–275 V)
Nominal frequency50 / 60 Hz
Max. output overcurrent / fault current6.5 A / 6.5 A
Power factor / THD> 0.99 (default), adjustable / < 3%
Night-time power consumption< 50 mW
General
Dimensions (W × H × D) / weight274 × 222 × 36.5 mm / 3.22 kg
Housing / ingress protectionMetal / IP67 (NEMA 6), outdoor
Operating ambient temperature−40 to 65 °C (derating at high temperatures)
Relative humidity / max. altitude0–100%, non-condensing / 2,000 m
Cooling / isolationNatural convection, fanless / galvanically isolated
Communication / monitoringWi-Fi (2.4 GHz) / VIP Cloud
Zero export controlVia EnergyPilot local EMS controller (optional)
  1. Keep module Voc below 60 V at the lowest expected site temperature — Voc rises in the cold.
  2. Units per branch depend on the AC cable cross-section; always follow local requirements.
  3. Values measured in the VaySunic laboratory under specific test conditions; they are typical values, not warranted values.
Warranty & documents

Covered, and documented.

15years

15-year limited warranty (Europe)

  • Your statutory rights are not affected.
See warranty periods

Datasheet values are typical lab values and are not warranted values.

PDFSolarCore P2 datasheetSpecifications, PDFEULimited WarrantyEurope · warranty periodsALLDownload centreCertificates, guides and manuals
