Versatile for residential and commercial applications.
Smart monitoring and easy on-site installation.
Signal-encrypted design with enhanced safety protection.
Transmission distance up to 400m with penetration through 199 panels.
SCG-G1
Experience unparalleled signal strength with SCG! Our advanced technology enables seamless data monitoring from any location, utilizing long-range, wall-penetrating capabilities that extend up to 400 meters.
Whether placed indoors or across multiple floors and rooms, SCG ensures robust connectivity, providing reliable data transmission throughout your entire environment.
Read MoreVersatile for residential and commercial applications.
Smart monitoring and easy on-site installation.
Signal-encrypted design with enhanced safety protection.
Transmission distance up to 400m with penetration through 199 panels.

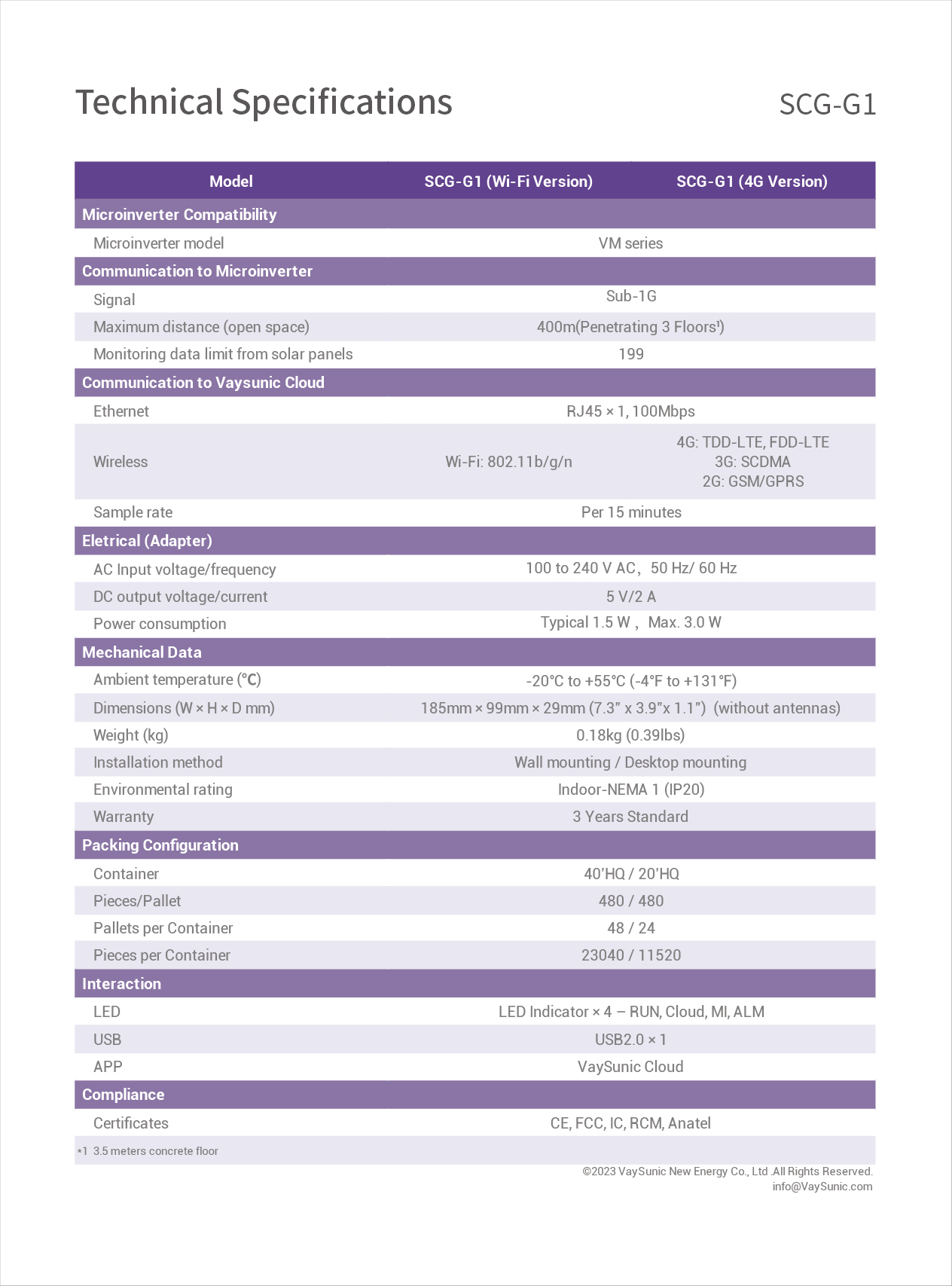

Microinverter model: VM Series /VS Series
Signal: Sub-1G
Maximum distance (open space): 400m
Monitoring data limit from solar panels: 199¹
Wireless: Wi-Fi: 802.11b/g/n; 4G: TDD-LTE, FDD-LTE; 3G: SCDMA; 2G: GSM/GPRS
Dimensions (W x H x D):185mm × 99mm × 29mm (without antennas)
Weight: 0.18kg
Steps on how to install SCG-G1 Solar Control Gateway and the monitoring program.
