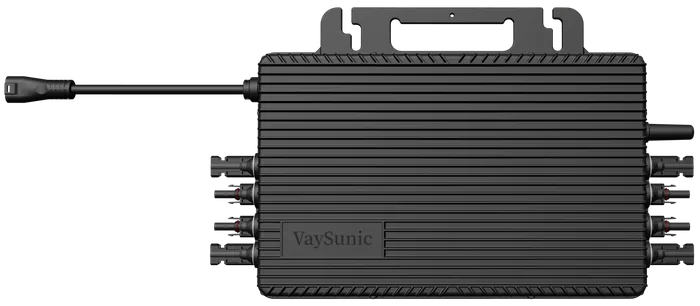

Number of MPPTs: 4

WiFi setup time: 20s, fast and use-friendly

Compliant: Rapid Shutdown (RSD)

4-in-1 design: simplify installation and more cost-effective

IP-67 rated: dust tight, temporary water immersion for ultra-high protection

Low Light Power Generator: start generating from 2W. Harvest the first and last rays of sunshine

High Temperature Performer: full power operations at even 60℃ for continuous energy supply without interruptions

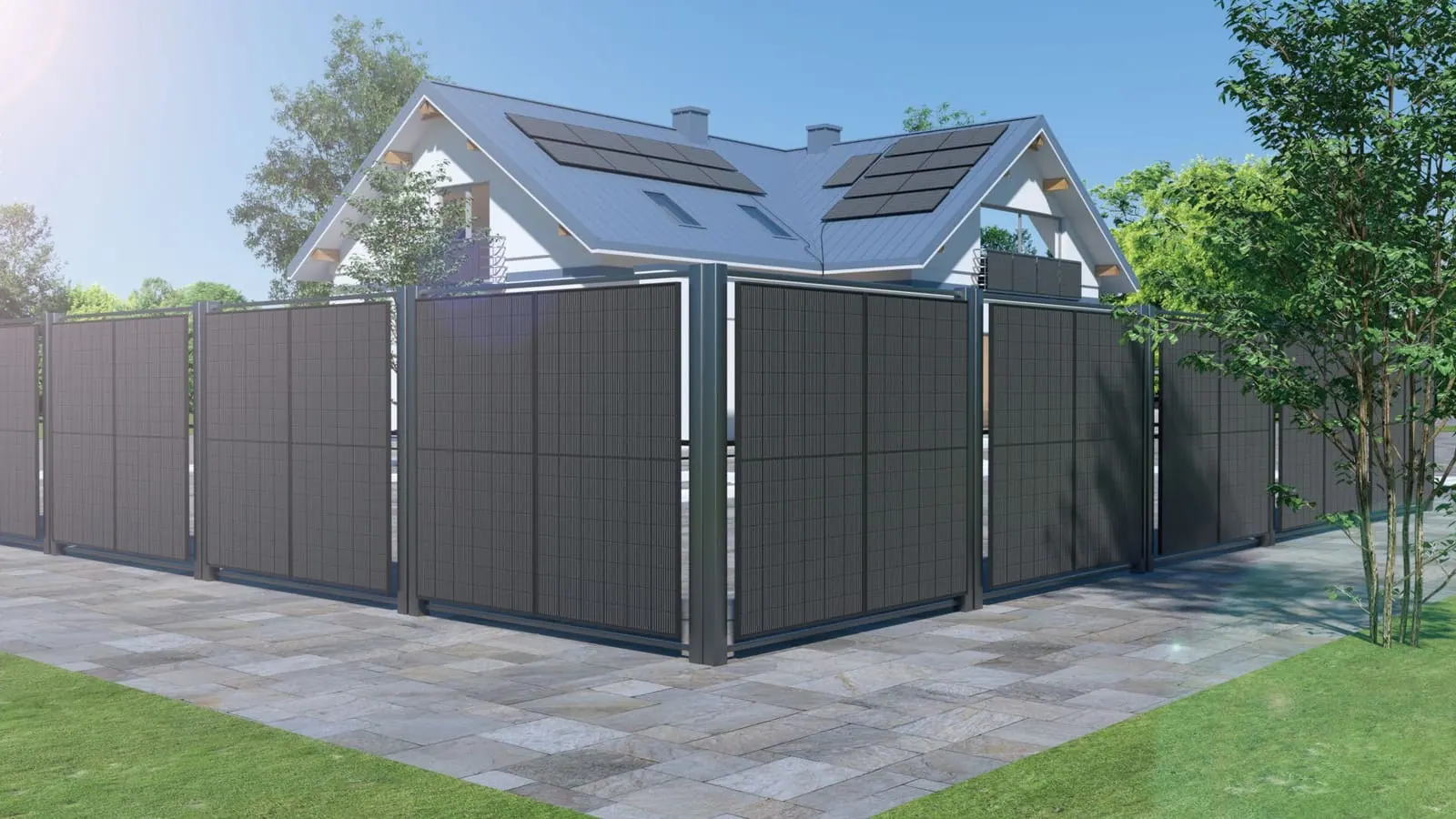

Multiple Applications: suitable for rooftops, gardens, fences, cabins, commercial enterprises and much more

2 Connection Methods: encrypted WiFi or sub-1Ghz

Commonly Module Power: 400W to 670W+

Operation Voltage Range: 14V to 63V

Number of Maximum Power Point Trackers (MPPTs): 4MPPTs (for 4 panels)

Rated Output Power: 2000VA

Maximum Input Short Circuit Current: 25A

Dimensions (W x H x D): 335mm × 263mm × 40mm

Weight: 5.5kg

Communications (W or B): W = built-in encrypted WiFi / B = built-in Sub-1GHz

Commonly Module Power: 400W to 670W+

Operation Voltage Range: 14V to 63V

Number of Maximum Power Point Trackers (MPPTs): 4MPPTs (for 4 panels)

Rated Output Power: 2100VA

Maximum Input Short Circuit Current: 25A

Dimensions (W x H x D): 335mm × 263mm × 40mm

Weight: 5.5kg

Communications (W or B): W = built-in encrypted WiFi / B = built-in Sub-1GHz

Commonly Module Power: 400W to 700W+

Operation Voltage Range: 14V to 63V

Number of Maximum Power Point Trackers (MPPTs): 4MPPTs (for 4 panels)

Rated Output Power: 2250VA

Maximum Input Short Circuit Current: 25A

Dimensions (W x H x D): 335mm × 263mm × 40mm

Weight: 5.5kg

Communications (W or B): W = built-in encrypted WiFi / B = built-in Sub-1GHz

VM Series 2000W 2250W-P4_Datasheet_VaySunic_Global_V1.0

VaySunic_Installation Calculator (Please download and use the full functionality)
