VM Series

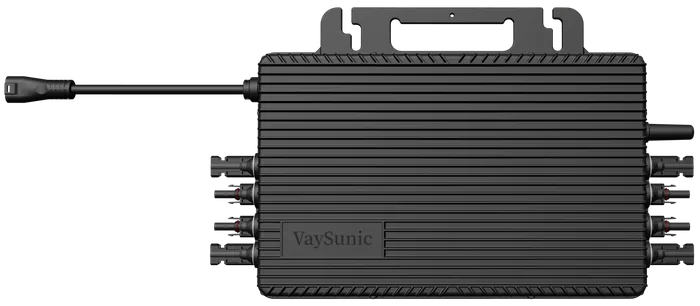

VM 2000 2250WE/BE-P4
WE = Built-in encrypted WiFi / BE = Built-in Sub-1GHz
(P4 = manages 4 solar panels)

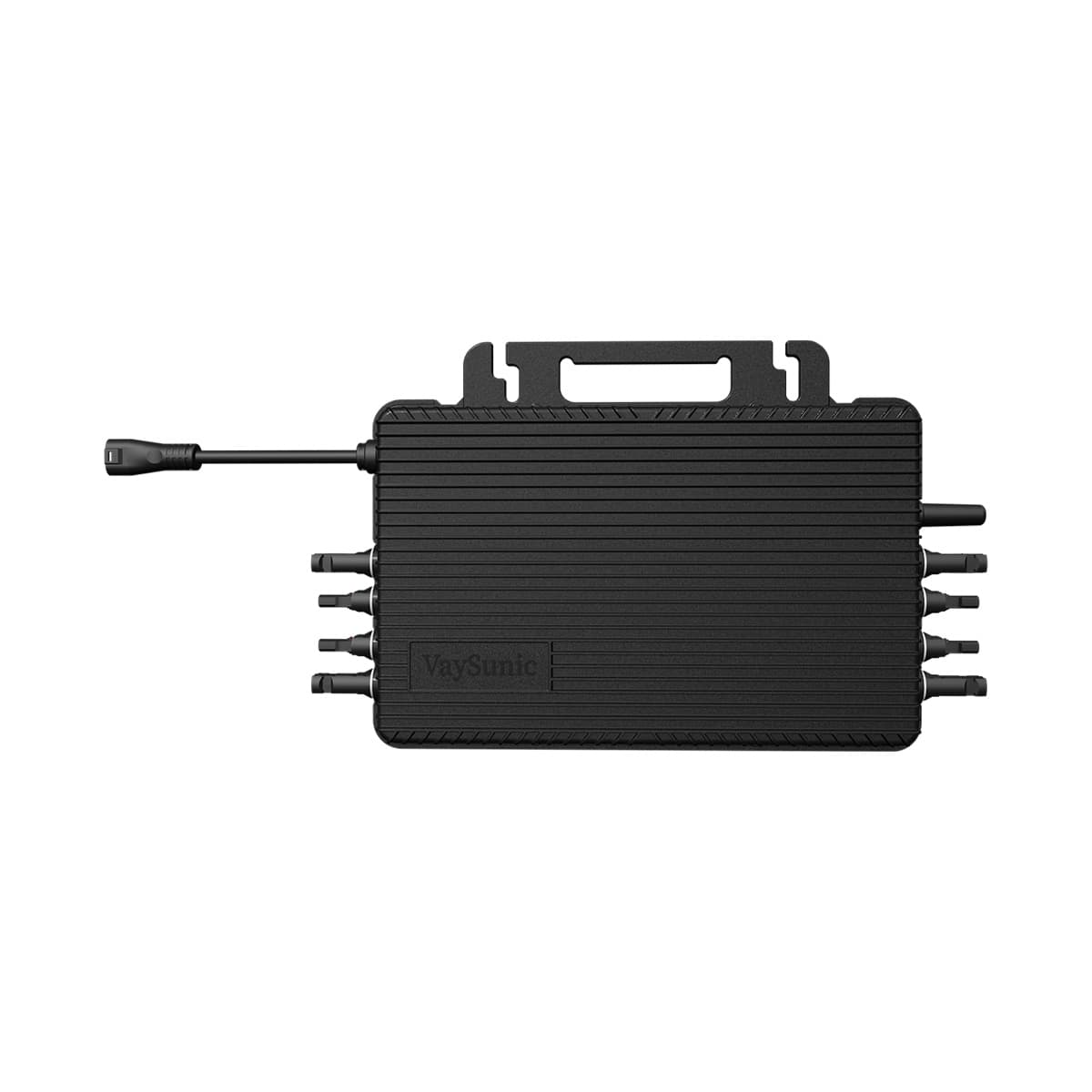

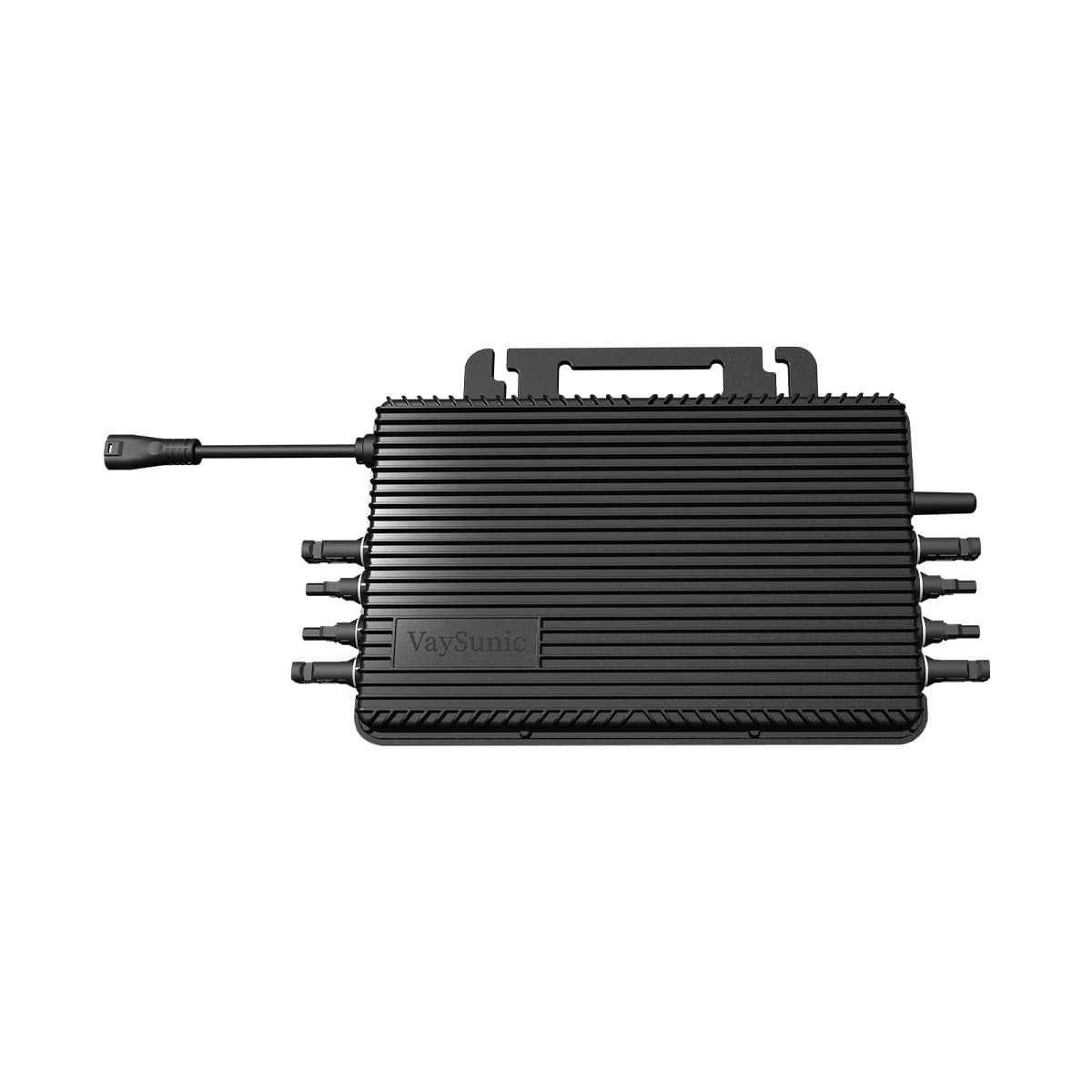

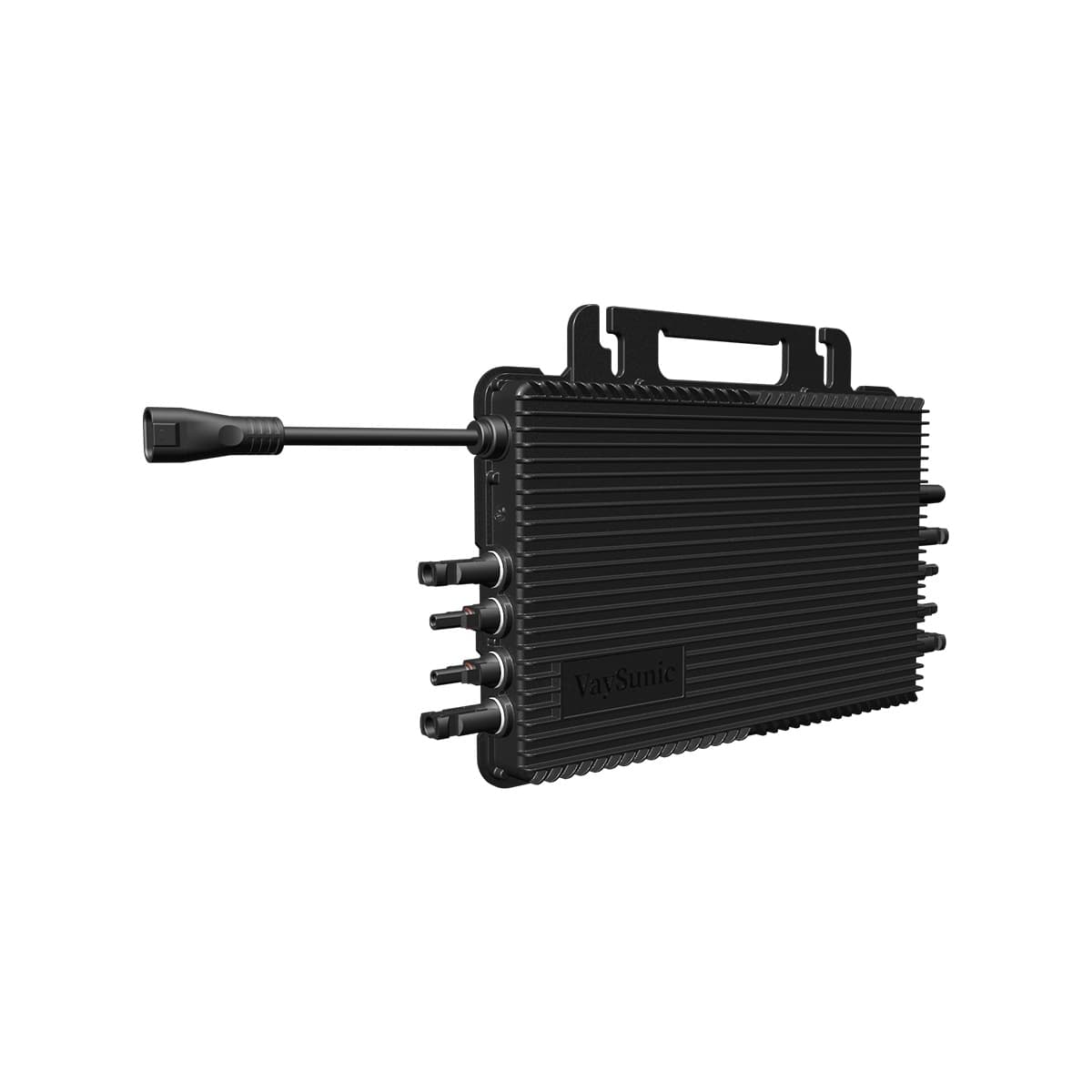

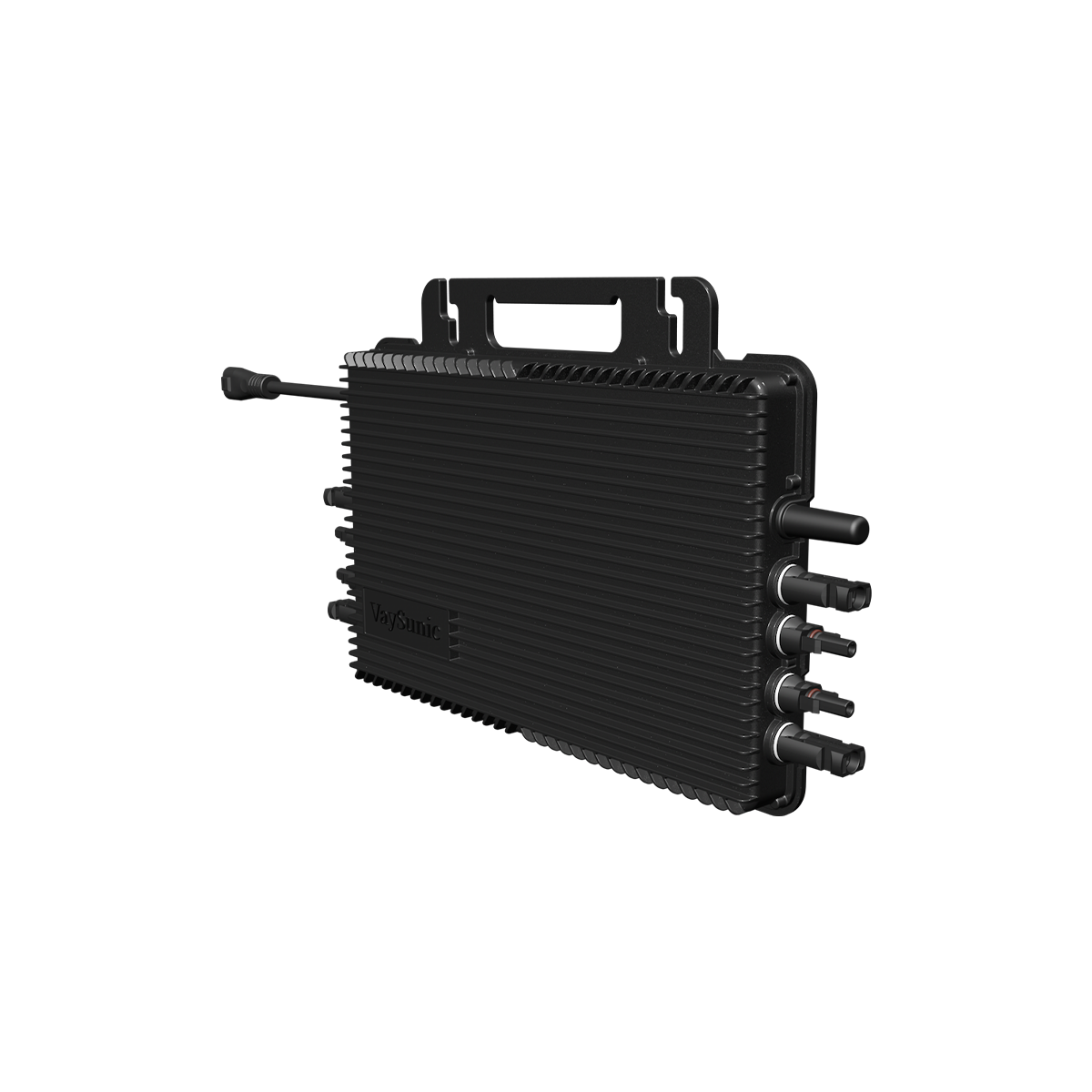

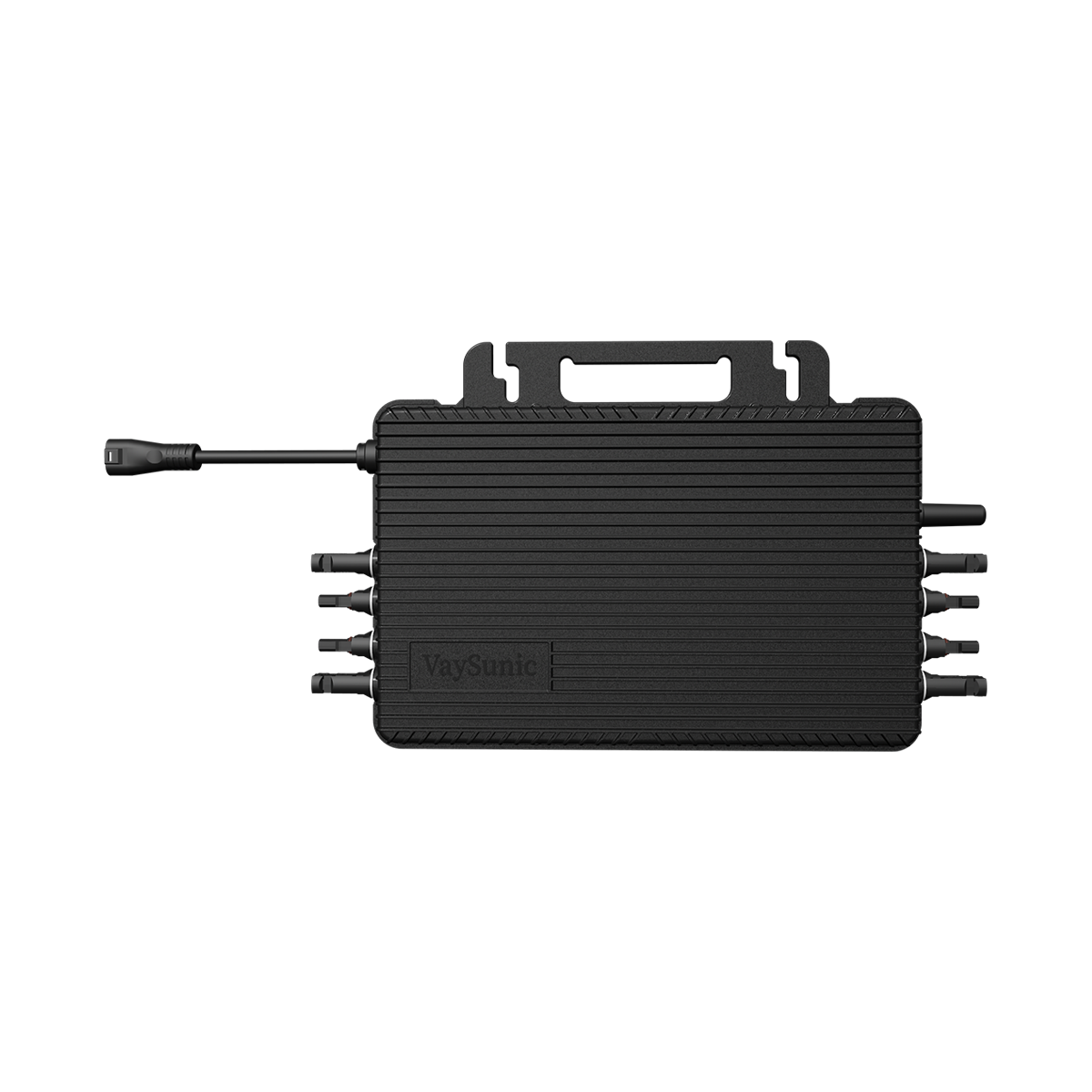

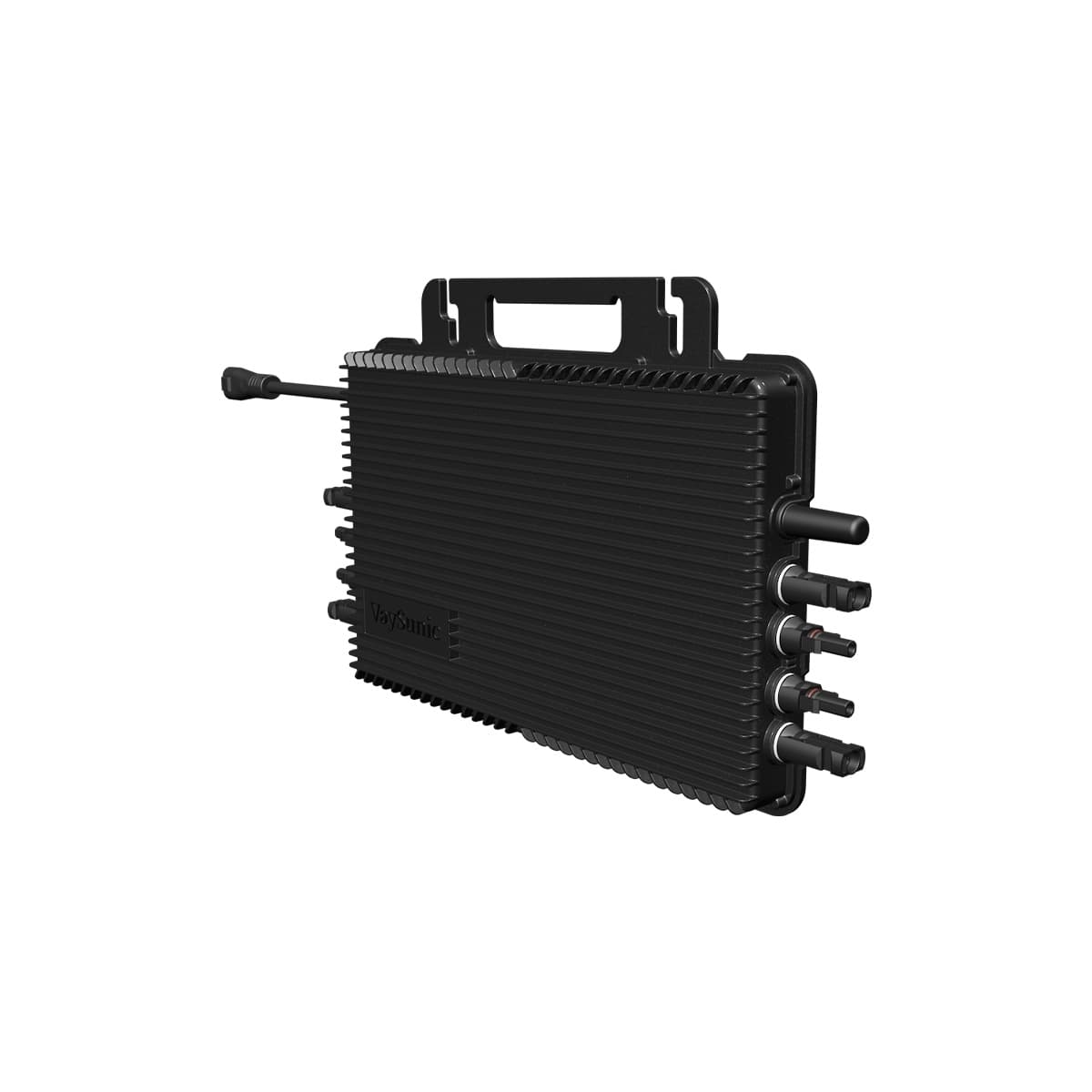

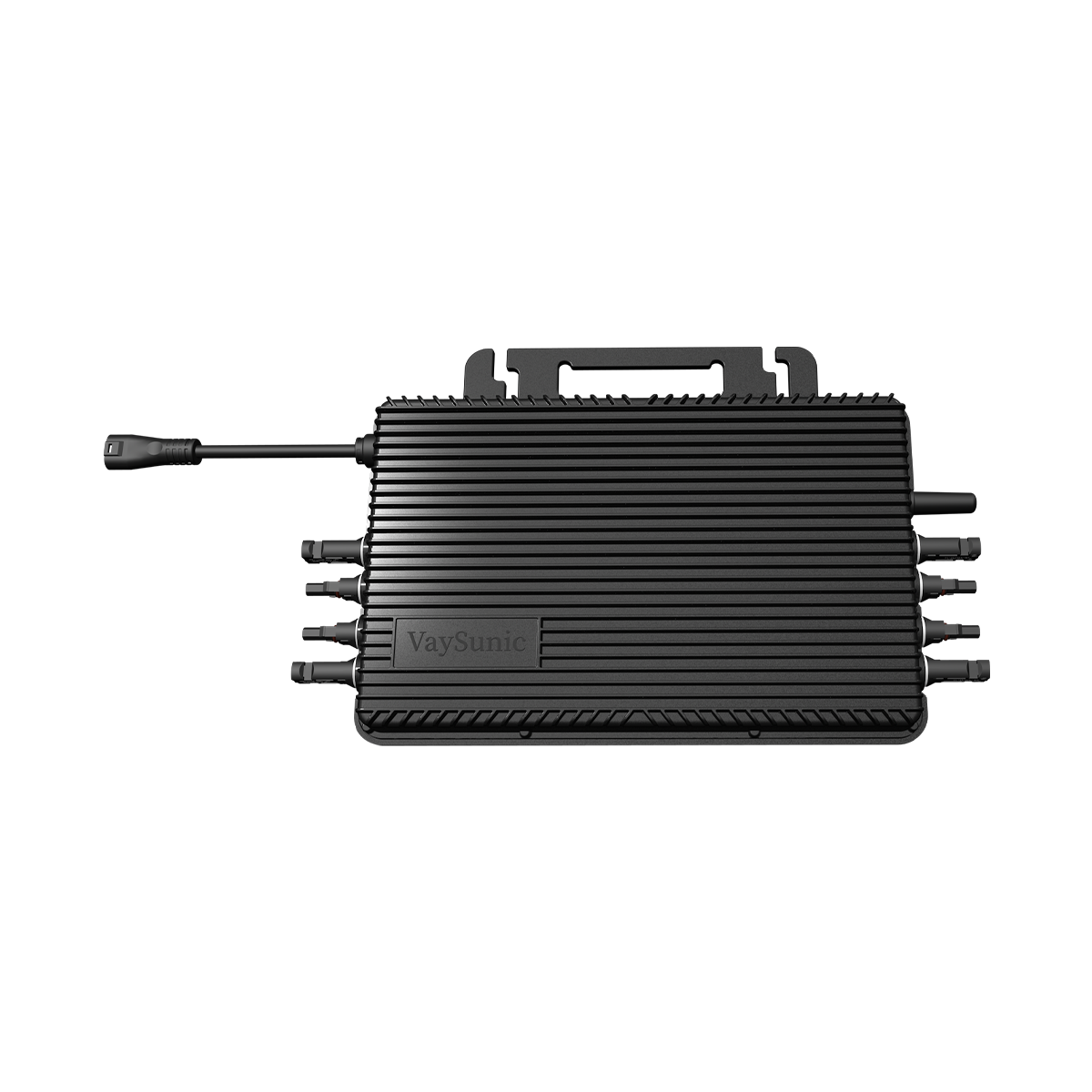

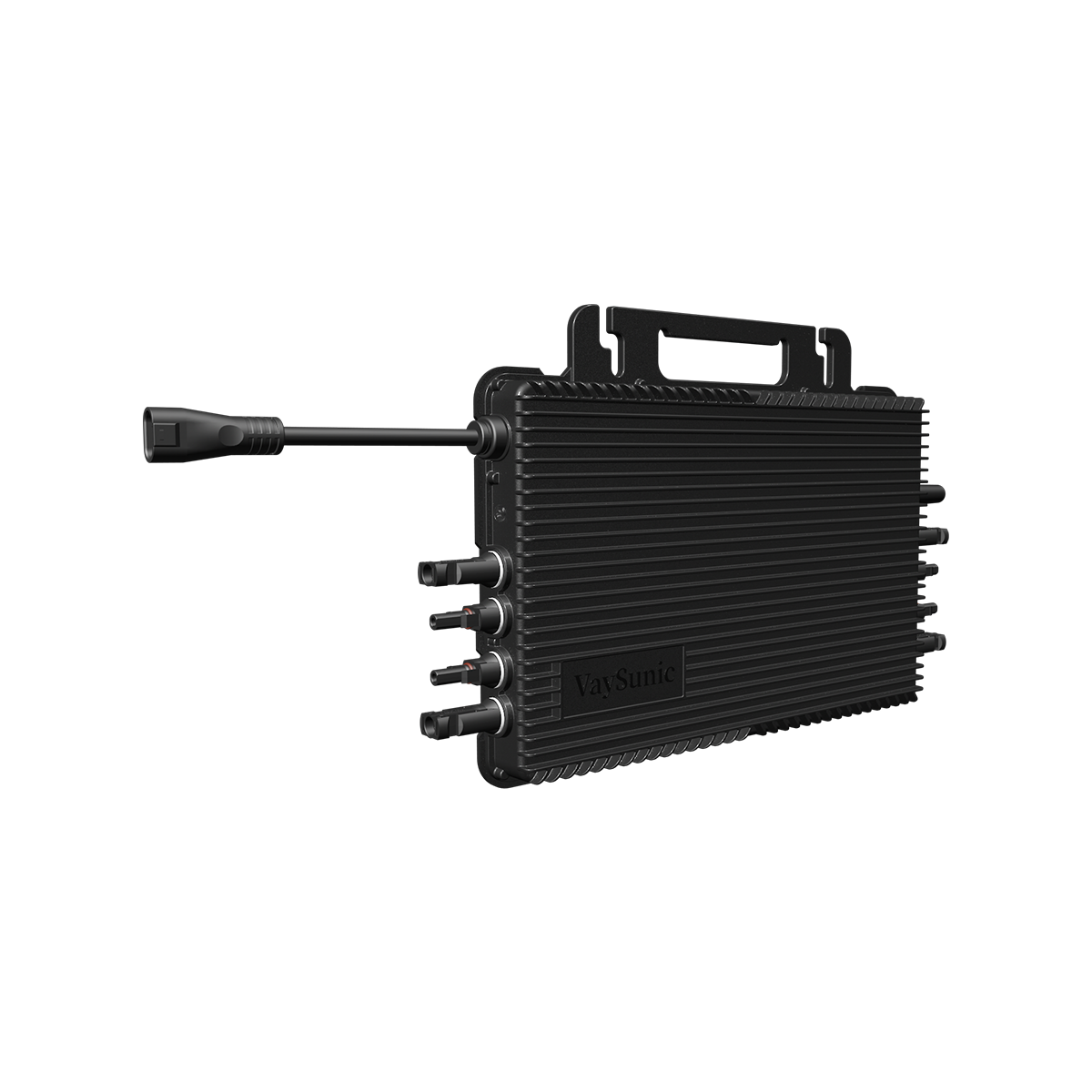

VaySunic new generation microinverter VM2000 2250WE/BE-P4 series is designed to accommodate high-powered PV modules, with maximum output power up to 2250 VA and maximum DC input current up to 17 A.

The innovative 4-input design enables faster installation and lower cost, and makes the VM2000 2250WE/BE-P4 series a very costeffective choice.

Read More

  • Number of MPPTs: 4

  • WiFi setup time: 20s, fast and use-friendly

  • Compliant: Rapid Shutdown (RSD)

  • 4-in-1 design: simplify installation and more cost-effective

  • IP-67 rated: dust tight, temporary water immersion for ultra-high protection

  • Low Light Power Generator: start generating from 2W. Harvest the first and last rays of sunshine

  • High Temperature Performer: full power operations at even 60℃ for continuous energy supply without interruptions

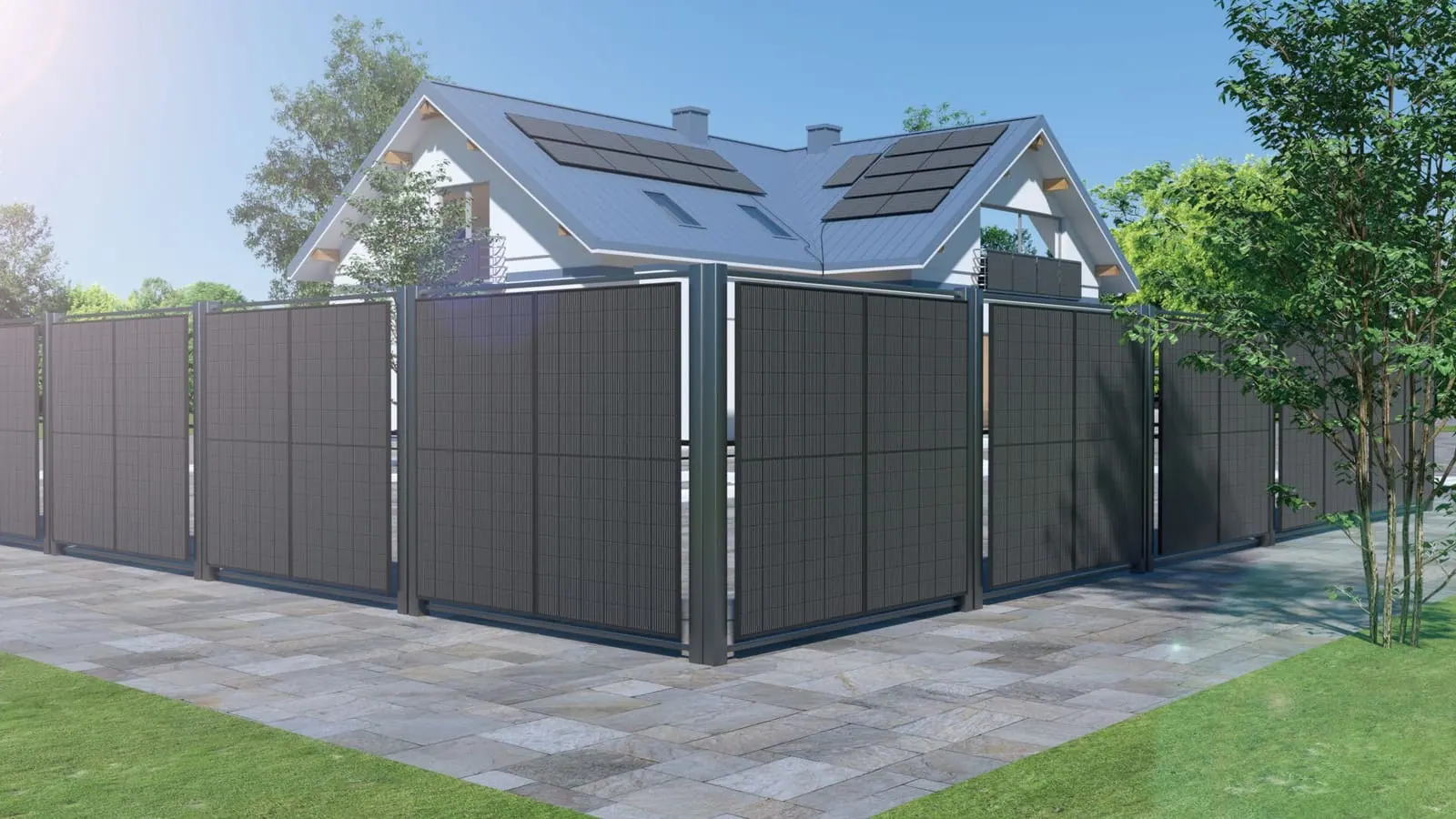

  • Multiple Applications: suitable for rooftops, gardens, fences, cabins, commercial enterprises and much more

  • 2 Connection Methods: encrypted WiFi or sub-1Ghz

  • Commonly Module Power: 400 to 670W+

  • Operation Voltage Range: 14-63V

  • Number of Maximum Power Point Trackers (MPPTs): 4MPPTs (for 4 panels)

  • Rated Output Power: 2000VA

  • Maximum Input Short Circuit Current: 25A

  • Dimensions (W x H x D ): 335 × 263 × 40mm

  • Weight: 6.0kg

  • Communications (WE or BE): WE = built-in encrypted WiFi / BE = built-in Sub-1GHz

  • Commonly Module Power: 400 to 700W+

  • Operation Voltage Range: 14-63V

  • Number of Maximum Power Point Trackers (MPPTs): 4MPPTs (for 4 panels)

  • Rated Output Power: 2250VA

  • Maximum Input Short Circuit Current: 25A

  • Dimensions (W x H x D ): 335 × 263 × 40mm

  • Weight: 6.0kg

  • Communications (WE or BE): WE = built-in encrypted WiFi / BE = built-in Sub-1GHz
