• IP-67 rated: dust tight, temporary water immersion for ultra-high protection

• Low Light Power Generator: it only takes is 2W to run VaySunic Microinverters adding 3 extra hours per day of production compared to the competition

• High Temperature Performer: full power operations at even 55℃ for continuous energy supply without interruptions

• Multiple Applications: suitable for rooftops, balconies, gardens, fences, cabins, commercial enterprises and much more

• 2 Connection Methods: encrypted WiFi or sub-1Ghz

• 100% Compliant: Rapid Shutdown (RSD) and ElectroMagnetic Compatibility (EMC)

• 15-year standard warranty, extendable to 25 years

• Grid connection in 20 seconds, one-click, simple operation

• Common Module Power (Watts): 280W to 470+W

• Operating Voltage Range (Volts): 14V to 63V

• Number of Maximum Power Point Trackers (MPPTs): 1 MPPT (for 1 panel)

• Rated Output Power (VA): 350VA

• Maximum Output Overcurrent Protection (Amps):  6.5A

• Dimensions in mm (W x H x D): 185mm x 215mm x 31mm

• Weight in kilograms (kg): 1.8kg

• Communications (WE or BE): WE = built-in encrypted WiFi / BE = built-in Sub-1Ghz

• Common Module Power (Watts): 320W to 540+W

• Operating Voltage Range (Volts): 14V to 63V

• Number of Maximum Power Point Trackers (MPPTs): 1 MPPT (for 1 panel)

• Rated Output Power (VA): 400VA

• Maximum Output Overcurrent Protection (Amps): 6.5A

• Dimensions in mm (W x H x D): 185mm x 215mm x 31mm

• Weight in kilograms (kg): 1.8kg

• Communications (WE or BE): WE = built-in encrypted WiFi / BE = built-in Sub-1Ghz

• Common Module Power (Watts): 360W to 600+W

• Operating Voltage Range (Volts): 14V to 63V

• Number of Maximum Power Point Trackers (MPPTs): 1 MPPT (for 1 panel)

• Rated Output Power (VA): 450VA

• Maximum Output Overcurrent Protection (Amps): 6.5A

• Dimensions in mm (W x H x D): 185mm x 215mm x 31mm

• Weight in kilograms (kg): 1.8kg

• Communications (WE or BE): WE = built-in encrypted WiFi / BE = built-in Sub-1Ghz

• Common Module Power (Watts): 400W to 670+W

• Operating Voltage Range (Volts): 14V to 63V

• Number of Maximum Power Point Trackers (MPPTs): 1 MPPT (for 1 panel)

• Rated Output Power (VA): 500VA

• Maximum Output Overcurrent Protection (Amps): 6.5A

• Dimensions in mm (W x H x D): 185mm x 215mm x 31mm

• Weight in kilograms (kg): 1.8kg

• Communications (WE or BE): WE = built-in encrypted WiFi / BE = built-in Sub-1Ghz

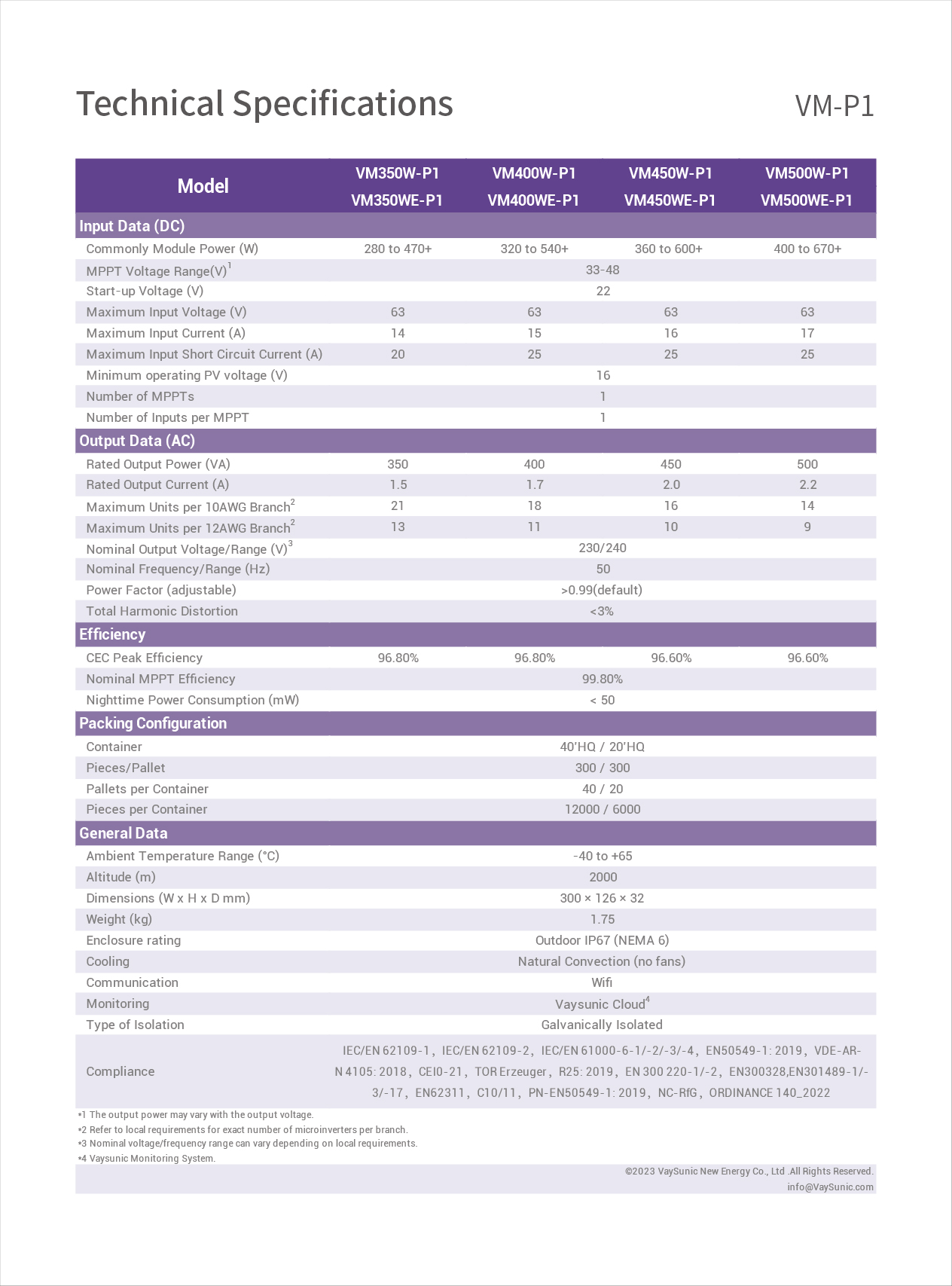

• VM Series 350W 400W 450W 500W-P1 Datasheet VaySunic Global V1.0

• VaySunic New Energy Limited Warranty-Global_V202312


Steps on how to install VM 350 400 450 500WE/BE-P1 microinverters and the monitoring program
